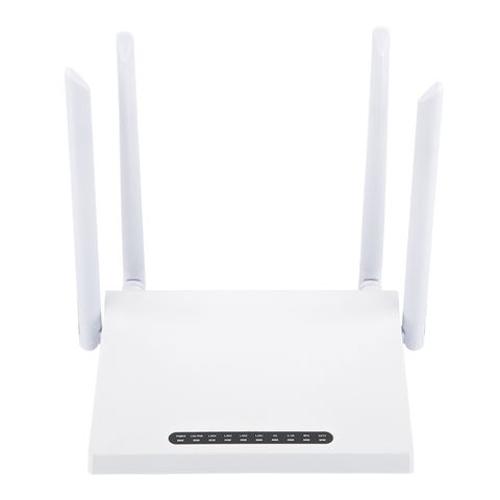

manufacturer factory WIFI ONU 4GE+4WIFI HGU 1000M XPON FPON ONU ONT
Short Description:
| Technical Item | Details |
| PON interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-28dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
| LAN interface | 4 x 10/100/1000Mbps auto adaptive Ethernetinterfaces Full/Half, RJ45 connector |
| WIFI Interface | Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support 2*2MIMO, 5dBi external antenna, rate up to 867Gbps Support: multiple SSID TX power: 11n--22dBm/11ac--24dBm |
| LED | 9 LED, For Status of PWR,LOS,PON,LAN1,LAN2,LAN3,LAN4,2.4G,5.8G |
| Push-Button | 3 button for Function of Power on/off, Reset, WPS |
| Operating condition | Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
| Storing Condition | Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
| Power supply | DC 12V/1A |
| Power Consumption | <6W |
| Net Weight | <0.3kg |
