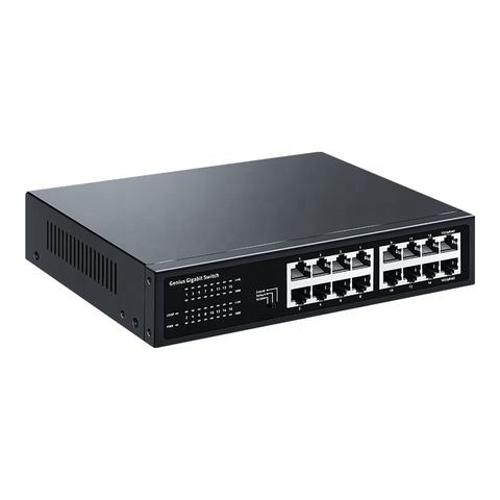

16 Port Gigabit Ethernet Switch 1000Mbps Network Fast Smart Switcher Hub Internet Splitter with VLAN,QOS,Loop Alarm
Short Description:
| Power | AC Input (100-240V) |
| Ethernet | 16* 10/100/1000M RJ45 Ports |
| Bandwidth | 32Gbps |
| Throughput | 23.8Mpps |
| Packet Buffer | 4M |
| MAC Address | 8K |
| Jumbo Frame | 4K |
| Transfer Mode | Store and forward |
| MTBF | 100000 hours |
| Network protocol | IEEE802.3 (10Base-T)IEEE802.3u (100Base-TX)IEEE802.3ab (1000Base-TX)IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class AEMS: EN61000-4-2 (ESD)EN61000-4-5(Surge) |
| Network Medium | 10Base-T: Cat3, 4, 5 or above UTP(≤100m)100Base-TX: Cat5 or above UTP(≤100m)1000Base-TX: Cat5 or above UTP(≤100m) |
| Security Certificate | CE, FCC, RoHS |
| Working Environment | Working Temperature: -10~50°CStorage Temperature: -40~70°CWorking Humidity: 10%~90%, non-condensingStorage Temperature: 5%~90%, non-condensing |
| Structure Size | Product Size: 220*161*44mmPackage Size: 315*215*85mmProduct Net-Weight: 0.90kgProduct Gross-Weight: 1.42kg |
| Packing Info | MEAS: 445*455*335mmPacking Qty: 10 unitPacking weight:15.2KG |
| Power Voltage | Power Input Voltage :AC 100-240 V 12V1A |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Warranty card 1 pc, Brackets 1 pair |
| LED Indicators | PWR (Power indicator), Link (Network Link), LOOP (Loop alarm) |
| DIP Switch | VLAN:Port Isolation, 1-14 ports are isolated each other, all communicate with uplink port15/16;Default:Default mode, Support loop alarm;Extend:Monitor Mode, 1-14 ports support 100M speed reduction negotiation, support 250meters in 10Mbps/s mode, port 15 and port 16 as uplink port; |
