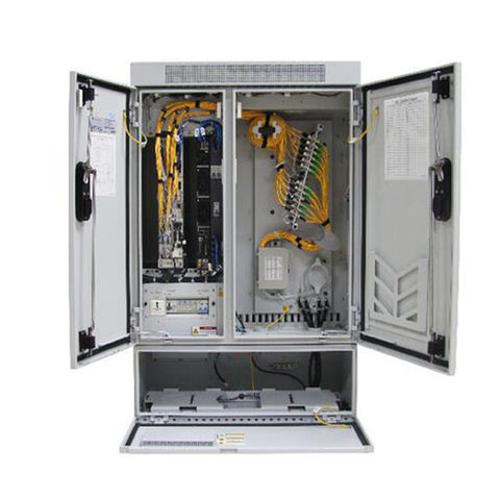

Huawei F01S200 Outdoor Cabinet for FTTx
Short Description:
| Specifications | |
| F01C50 | |
| F01E50 | |
| F01S100 | |
| F01S200 | |
| F01S300 | F01D500 |
| Dimensions (H x W x D) | |
| 600 mm x 550 mm x 160 mm | |
| 860 mm x 600 mm x 180 mm | |
| 830 mm x 670 mm x 250 mm | |
| 850 mm x 750 mm x 350 mm | |
| 1,350 mm x 850 mm x 450 mm | 1,650 mm x 1,550 mm x 550 mm |
| Devices | |
| 1 x MA5620 1 x MA5626 1 x MA5623 1 x MA5612 | |
| 1 x MA5616 | |
| 1 x MA5616 | |
| 1 x MA5616 | |
| 3 x MA5616/1 x MA5603T | 1 x MA5600T |
| Service Capacity | |
| < 48 lines | |
| < 128 lines | |
| < 128 lines | |
| < 192 lines | |
| < 384 lines | < 1,024 lines |
| Installation Scenarios | |
| Corridor and indoor | |
| Corridor, basement, and indoor | |
| Outdoor | |
| Outdoor | |
| Outdoor | |
| Outdoor | |
| Installation Modes | |
| Pole-mounted or wall-mounted | |
| Pole-mounted, wall-mounted, and base-installed | |
| Pole-mounted, wall-mounted, and base-installed | |
| Pole-mounted, wall-mounted, and base-installed | |
| Base-installed | |
| Base-installed | |
| Operating Environment | |
| –25°C to +45°C | |
| –25°C to +45°C | |
| –33°C to +45°C (1,120W/m² solar radiation) | |
| –33°C to +45°C (1,120W/m² solar radiation) | |
| –33°C to +45°C (1,120W/m² solar radiation) | –40°C to +45°C (1,120W/m² solar radiation) |
| Water-proof and Dust-proof Rating | |
| IP31 | |
| IP31 | |
| IP55 | |
| IP55 | |
| IP55 | |
| IP55 | |
| Noise Rating | |
| Class4.1 protected-area level | |
| Class4.1E protected-area level | |
| Class4.1 protected-area level | |
| Class4.1E protected-area level | |
| Class4.1E protected-area level | Class 4.1E city level |
| Weight | |
| 15.7 kg | |
| 49 kg | |
| 58 kg | |
| 85 kg | |
| 270 kg | 417 kg |
