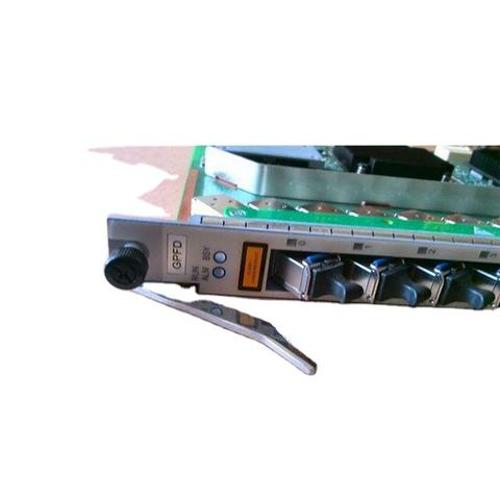

HUAWEI MA5600T MA5603T MA5608T GPFD 16 GPON Ports with SFP
Short Description:
| Forwarding capability | 40 Gbit/s |
| T-CONTs per PON port | 1K |
| Service flows per PON board | 16K |
| Maximum frame size | 2004 bytes |
| MAC addresses | 32K |
| Maximum distance difference between two ONUs under the same PON port | 40 km from V800R013 |
| N:1/1:1 VMAC | Supported |
| FEC | Bidirection |
| CAR group | Supported |
| IPv6 | Supported |
| Variable-length OMCI | Supported from V800R013 |
| ONU-based shaping or queue-based shaping | Supported |
| Load sharing | Supported |
| High-precision clock time synchronization | Supported |
| Type B/Type C protection | Supported |
| Rogue ONU detection and isolation | Supported |
| Automatic shutdown at high temperature | Supported |
| Automatic shutdown of an idle port | Supported |
| 1:64 eOTDR | Supported (with FBG) |
| Operating temperature | -40°C to +65°C |
| Power consumption | • Static: 45 W • Maximum: 73 W |
