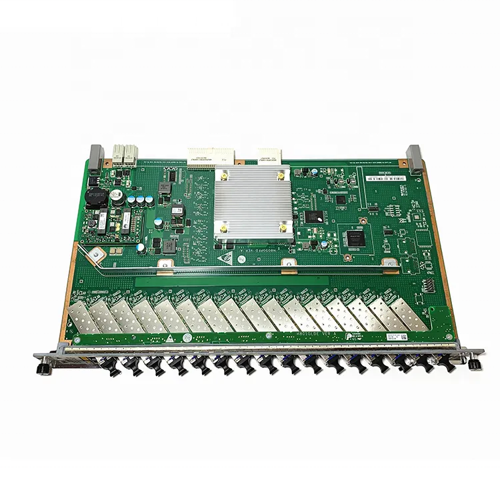

Original Gpon GPFD 16 Ports C+ C++ Service Board Gpfd For HW Ma5680t 5608t 5683t Olt
Short Description:
| Specification | H806GPFD |
| Port quantity | 16 |
| MAX Split ratio (Class B+) | 1: 64 |
| MAX Split ratio (Class C+/Class C++) | 1: 128 |
| ONU-based shaping | Yes |
| Optical performance monitor | Yes |
| Controlled optical signal transmission of the optical module | Yes |
| ONU-based rate limitation | Yes |
| CAR group | Yes |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of a high temperature | Yes |
| Maximum differential fiber distance (km) | 40 |
| Maximum Number of Service Flows Supported by the Board | 16368 |
| Maximum Number of MAC address Supported by the Board | 32768 |
| Available DBA bandwidth (based on single port) (kbit/s) | 1238784 |
| Number of T-CONT supported by each GPON port | 1024 |
| Board supporting downstream FEC | Yes |
| Board supporting upstream FEC | Yes |
| Rogue ONT detection | Yes |
| Number of ONUs supported by a GPON port | 128 |
| Number of GEM ports supported by each board | 16384 |
| Number of GEM ports supported by each GPON port | 3872 |
| Number of service ports supported by each GEM port | 8184 |
| HQoS (four levels) | · H802GPFD: No· H805GPFD/H806GPFD: Yes |
| 9216-byte Jumbo frames | · H802GPFD: No· H805GPFD/H806GPFD: Yes |
| 1588v2 | Yes |
| Power budget supported by a GPON port | · Class B+ (28 dB, mostly used)· Class C+ (32 dB long reach transmission)· Class C++: 35 dB |
| Minimum bandwidth supported by a T-CONT | · 1 Mbit/s (in the minimum delay mode)· 128 kbit/s (in the maximum bandwidth usage mode) |
