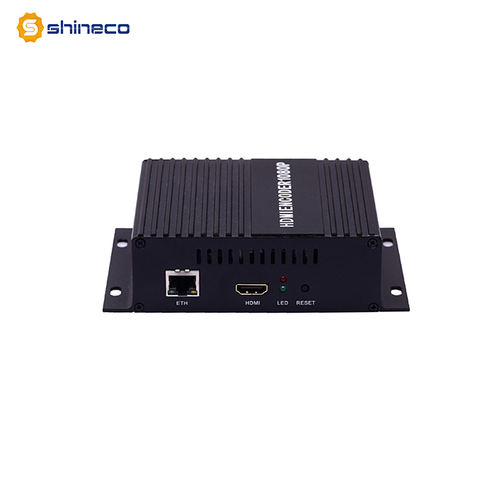

one channel HD to RTSP Encoder for low cost IP streaming service digital tv
Short Description:
| Video | Video compression: H.264/AVC High Profile Level 4.0Video inputs: HD(support HDCP protocol), CVBS/ HD+VGA inAnalog video input mode: PAL, NTSCResolution: 1920*1080_60P, 1920*1080_60i,1920*1080_50i, 1280*720_60P, 1280*720_50P,Bit-rate: 0.8 ~ 12Mbps, CBR/VBRVideo pre-processing: De-interlacing, Noise reduction, Sharpen |
| Audio | Audio compression: AAC, MP3Sampling rate: Adaptive, output sample rate optionalSampling accuracy: 24-bitBit Rate: 32K,44.1K,48K,64K,96K,128K,160K,192KEncoding bit rate: 64 ~ 384Kbps |
| IP output | Transport protocol: TS over IP output, RTP/RTMP/RTSP/HTTP/UDP protocol |
| System | Protocols: HTTP,UDP,RTSP,RTMP,ONVIFConfiguration Interface: Web operationUpgraded: Can be via network for software upgraded.Connector: RJ45, 1000M Ethernet interface. |
| Physical and power | Voltage: 12V DCConsumption: 5WOperating temperature: 0~50°CDimensions: 170mm(W)*130mm(D)*33mm(H)(for 3U, mini type will be more small )Weight: 0.5Kg/pc |
