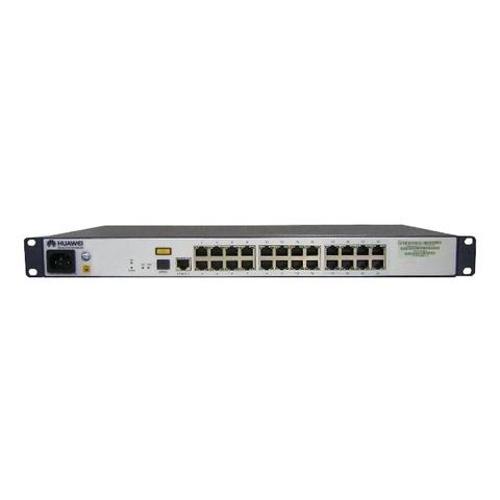

Huawei GPON ONU MDU MA5626 24 FE
Short Description:
| Network-side port | Each of them provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows:• 2 × GPON• 2 × GE (optical)• 1 × GE (optical) + 1×GPON |
| User-side port | •8/16/24 x FE •8/16/24 x FE (PoE) •4 x GE + 4 x FE (PoE) •8 x FE (reverse PoE) |
| Operating temperature | -40℃ to +55℃; startup at -25℃ |
| Humidity | 5% to 95% (non-condensing) |
| Heat Dissipation mode | Not providing fans; passive cooling |
| Lightning Protection capability | LAN:6 KV;POTS:4 KV |
| Power supply | AC: 220 V/110 V |
| Weight | 24 ports: 2.3 kg16 ports: 2.29 kg8 ports: 2.28 kg |
