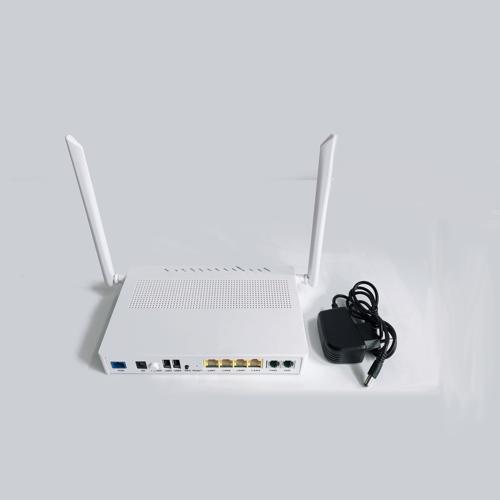

Fast Shipping Ftth Dual Mode ge 4 port Voip Wifi Gpon Epon Xpon Onu 2.4G 5G ONU

Short Description:


Product Detail

Technical item Details
PON Interface 1 GPON
Receiving sensitivity: ≤-27dBm
Transmitting optical power: +1~+4dBm
Transmission distance: 20KM
Wavelength TX: 1310nm, RX: 1490nm
Optical Interface SC/UPC Connector
Flash SPI NAND Flash 128MB
LAN Interface 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless Compliant with IEEE802.11b/g/n,ac
2.4G Operating frequency:2.400-2.4835GHz
5.8G Operating frequency:5.150-5.825GHz
2.4G 2*2 MIMO, rate up to 300Mbps
5.8G 2*2 MIMO ,rate up to 867Mbps
4 external antennas 5dBi
Support Multiple SSID
POTS interface FXS, RJ11 connector
Support: G.711/G.723/G.726/G.729 codec
Support: T.30/T.38/G.711 Fax mode, DTMF Relay
Line testing according to GR-909
USB Standard USB2.0
LED 9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G
Push-Button 2 ,For Function of Reset and WPS
Operating Condition Temperature: 0℃~+50℃
Humidity: 10%~90%(non-condensing)
Storing Condition Temperature: -30℃~+60℃
Humidity: 10%~90%(non-condensing)
Power Supply DC 12V/1A
Power Consumption ≤6W
Net Weight 0.3Kg
Storing Condition Temperature: -30℃~+60℃

xxxxxxx.
