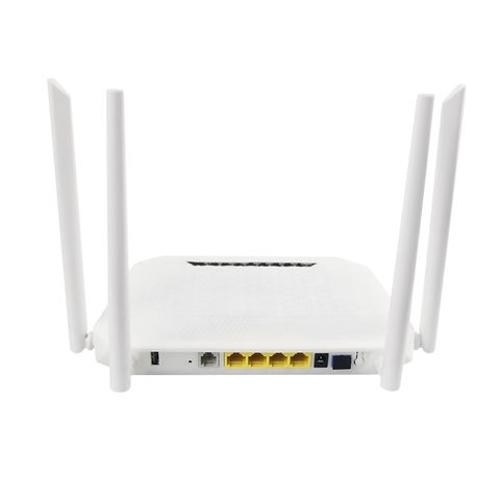

XPON ONU Dual wifi 2.4G 5G ONU HA414GVWBX support IPv4 and IPv6 ftth olt solutions
Short Description:
| Technical item | Details |
| PON Interface | 1 GPON BoB(Bosa on Board) |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC Connector |
| Chip Spec | CPU 950MHz,DDR2 128MB |
| Flash | SPI NAND Flash 128MB |
| LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| Wireless | Compliant with IEEE802.11b/g/n,ac |
| POTS interface | FXS, RJ11 connector |
| USB | Standard USB2.0 |
| LED | 9 LED, For Status of PWR,LOS,PON,LAN1~LAN4,2.4G,5.8G |
| Push-Button | 2 ,For Function of Reset and WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Storing Condition | Temperature: -30℃~+60℃ |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 248mm×158mm×192mm(L×W×H) |
| Net Weight | 0.3Kg |
| Storing Condition | Temperature: -30℃~+60℃ |
