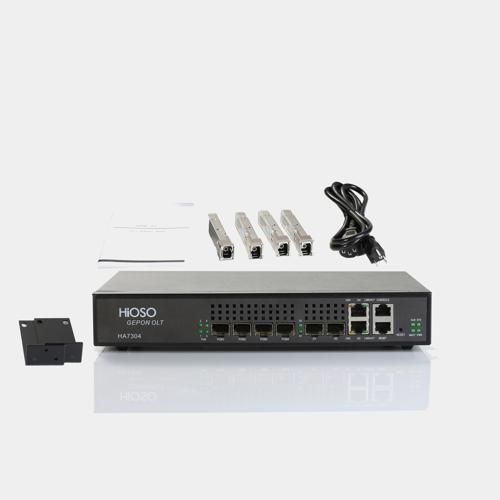

olt hioso Mini 4 ports olt epon fiber optical equipment No SFP px20+++
Short Description:
Parameter | Specifications |
Operating wavelength | 1310(RX)/1490(TX) |
Optical power | +0 ~ +7dBm |
Receiving sensitivity | -27dBm |
Max distance | 20km |
Max splitter ratio | 1:64 |
Capacity | 4 PON, standard: 64 ONUs maximum:128 ONUs |
MAC | 8K |
Uplink port | 4 1000M Ethernet RJ45 ports |
PON port | 4 SFP fiber ports |
Control port | RJ45 console port, to debug the device |
MTBF | 100,000 hours |
EPON traits | Support IEEE802.3ah |
Support DBA with minimum1Kbps granularity adjustable | |
Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
Support powerful OAM function, implement telnet management, maintenance and upgrade | |
Support auto discovery and auto register of ONU (real-time operation) | |
Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
Support IEEE802.1Q VLAN | |
Support IEEE 802.1P QoS | |
Management | CLI and GUI, SNMP, WEB |
Other Functions | Support 1GMPv1/v2 protocol report, query and leave message mouse |
Support real-time alarm detection, accurate fault location | |
Support the alarm information sent to the mailbox, support SMS alarm |
