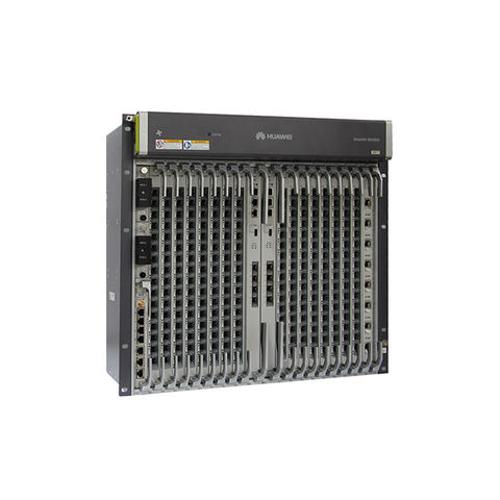

Huawei GPON EPON XG-PON 10G-EPON 40G-PON OLT MA5800-X17
Short Description:
| Item | |
| MA5800-X17 | MA5800-X7 |
| Switching Capacity | |
| 7 Tbit/s | 7 Tbit/s |
| GPON Ports | |
| 272 | 112 |
| XG-PON Ports | |
| 136 | 56 |
| Dimensions in mm (H x W x D) | |
| 486 x 533 x 286 | 264 x 442 x 242 |
| DC Power Supply | |
| -38.4V to -72V | -38.4V to -72V |
| GPON Board | 16 ports with Class B+/C+ SFP optical modules; eOTDR; 40 km differential reach; 4-level HQoS; 1588v2 |
| XG-PON Board | 8 ports with SFP+ optical modules; 40 km differential reach; 4-level HQoS; 1588V2 |
| Ethernet 10 GE Board | 8 x 10 GE SFP+ interface or 8 x GE SFP/eSFP interface; SyncE and 1588v2 |
