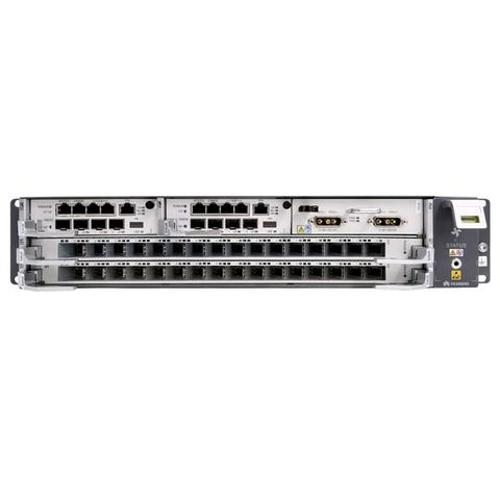

Huawei EA5800 Series EA5800-X2 Access GPON OLT FTTH POL FTTB
Short Description:
| Supported cabinet | |
| N63E-22 | |
| N66E-22 | |
| N66E-22 | N63E-22 |
| Board configuration | |
| Control board slot: 9,10 Service board or upstream interface board slot: 1-8,11-19 Universal interface board slot: 0 Power board slot: 20,21 | |
| Control board slot: 8,9 Service board or upstream interface board slot: 1-7, 10–17 Universal interface board slot: 0 Power board slot: 18,19 | |
| Control board slot: 8,9 Service board or upstream interface board slot: 1-7 Universal interface board slot: 0 Power board slot: 10,11 | Control board slot: 3,4 Service board or upstream interface board slot: 1-2 Do not support universal interface board Power board slot: 0 |
| Dimensions (W x D x H) (mm) | |
| Excluding mounting ears: 493.0 x 287.0 x 486.0 Including momounting ears: 535.0 x 287.0 x 486.0 | |
| Excluding mounting ears: 442.0 x 287.0 x 486.0 Including mounting ears: 482.6 x 287.0 x 486.0 | |
| Excluding mounting ears: 442.0 x 268.7 x 263.9 Including mounting ears of IEC standard: 482.6 x 268.7 x 263.9 Including mounting ears of ETSI standard: 535.0 x 268.7 x 263.9 | Excluding mounting ears: 442.0 x 268.7 x 88.1 Including mounting ears of IEC standard: 482.6 x 268.7 x 88.1 Including mounting ears of ETSI standard: 535.0 x 268.7 x 88.1 |
| Maximum weight (including mounting brackets) | |
| 45 kg | |
| 35 kg | |
| 26 kg | 9.4 kg |
| Maximum input current | |
| 60 A | |
| 60 A | |
| 40 A | DC power supply: 20 A AC power supply: 8 A |
| Power supply mode | |
| DC power support (dual for backup) | DC power support (dual for backup) AC power supply + battery for backup |
| Working voltage range | |
| -38.4 V DC to -72 V DC | DC power supply: -38.4 V to -72 V AC power supply: 100 V to 240 V |
| Rated voltage | |
| -48 V / -60 V | DC power supply: -48 V / -60 V AC power supply: 110 V / 220 V |
| Ambient temperature | -40°C to +65°C The EA5800 can start up at a lowest temperature of -25°C. |
| Ambient humidity | 5% RH to 95% RH |
| Atmospheric pressure | 70 kPa to 106 kPa |
| Altitude | < 4000 m, The air density varies with the altitude and will affect the heat dissipation of a device. Therefore, the working environment temperature of the EA5800 varies with the altitude. |
| Switching capacity of the control board (load sharing mode) | |
| 3.6 Tbit/s | 480 Gbit/s |
| Maximum bandwidth per service slot (load sharing mode) | |
| 100 Gbit/s | 80 Gbit/s |
| System Layer 2 packet forwarding rate (load sharing mode) | |
| 5298 Mpps | 714 Mpps |
| Maximum number of concurrent 4K video users | |
| 16000 | |
| 8000 | 2000 |
| Maximum number of MAC address | 262143 |
| Maximum number of IPv4 routing tables | 65536 |
| Maximum number of IPv6 routing tables | 16384 |
| Maximum number of ARP routing tables | |
| 131072 | 32768 |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| Bit error rate (BER) in full load | A BER smaller than 10 e-7 for a port that transmits data in full load |
| System reliability specifications | System availability for the typical configuration: > 99.999% Mean time between failures (MTBF): about 45 years. |
| GPON ports | |
| 272 | |
| 240 | |
| 112 | 32 |
| XG-PON ports | |
| 272 | |
| 240 | |
| 112 | 32 |
| XGS-PON ports | |
| 136 | |
| 120 | |
| 56 | 16 |
| GE/FE ports | |
| 816 | |
| 720 | |
| 336 | 96 |
| 10GE ports | |
| 408 | |
| 360 | |
| 168 | 16 |
