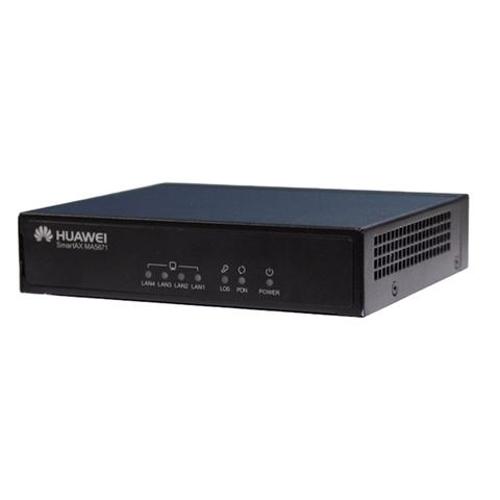

Huawei MA5670 Series WIFI GPON ONU 4GE MA5671
Short Description:
| Classification | |
| Description | MA5671 |
| GPON | |
| Class B and Class B+ optical modulesAuthentication by serial number (SN), password, SN+password, or LOIDType B protection | Y |
| Routing | |
| Network Address Translation (NAT)Automatic binding of Internet, Internet Protocol television (IPTV), and VoIP services to a port on the MA5670 seriesVirtual server and port triggerDemilitarized zone (DMZ) and dynamic domain name server (DDNS) | Y |
| Broadband | |
| Any port any serviceIPv6 ProtocolSupport 4 priority queues per user port | Y |
| Voice | |
| Session Initiation Protocol (SIP) and H.248Separation of media and signaling streams10 ms packet functionRFC2198Adjustable port impedance | N |
| Multicast | |
| Internet Group Management Protocol version 2 (IGMPv2) and IGMPv3 snoopingDynamic controllable multicastIGMP proxy | Y |
| Security | |
| Filtering of source MAC address, IP address, and uniform resource locator (URL)Denial of service (DoS) anti-attackAccess control rule configuration for the MA5670 series | Y |
| Maintenance | |
| Local management through the web pageRemote management of GPON terminals through optical network terminal management and control interface (OMCI)Optical power monitoringLoop line and call emulation tests performed through POTS portsGPON ring network detection | Y |
| Ethernet | |
| VLAN filtering and transparent transmissionVLAN tag adding for packetsVLAN translation and priority switching | Y |
| WLAN | |
| Power-saving mode for the stations (STAs) connected to the MA5670 seriesAdjustable transmit power | N |
| IPv6 | |
| Coexistence of IPv4 and IPv6IPv6 routingDHCPv6DNSv6 | Y |
| E1 access | |
| Native time division multiplexing (TDM) | N |
