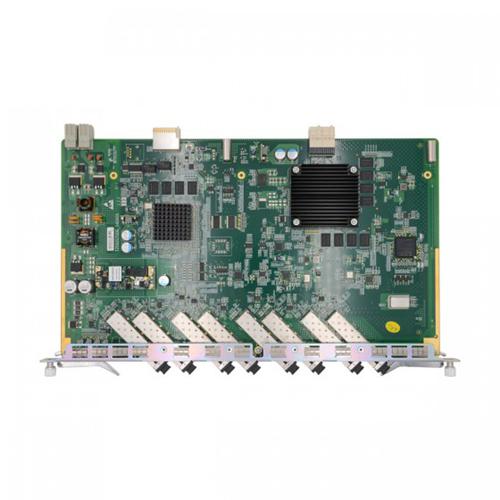

Low price GTGO 8 ports GPON olt service INTERFACE BOARD PON card with B+ C+ C++ SFP modules for ZTE C320 C300
Short Description:
| Brand | ZTE |
| Model | GTGO |
| GPON Port | 8-GPON Port |
| Type | C+ Module: Single Fiber Bidirectional Optical Module, Class C+ |
| MAX Split ratio (Class B+) | 1:64 |
| MAX Split ratio (Class C+/Class C++) | 1:128 |
| Operating Wavelength | Tx: 1490 nm, Rx: 1310 nm |
| Encapsulation Type | SFP |
| Port Rate | Tx: 2.488 Gbit/s, Rx: 1.244 Gbit/s |
| Minimum Output Optical Power | C+ Module : 3.00 dBm |
| Maximum Output Optical Power | C+ Module : 7.00 dBm |
| Maximum Receiver Sensitivity | C+ Module : -32.00 dBm |
| Optical Connector Type | SC/PC |
| Optical Fiber Type | Single-mode |
| Reach | 20.00 km |
| Overload Optical Power | C+ Module : -12.0 dBm |
| Extinction Ratio | 8.2 dB |
| Weight | 1kg |
| Dimensions (W x D x H) | 22.86 mm x 237.00 mm x 395.40 mm |
