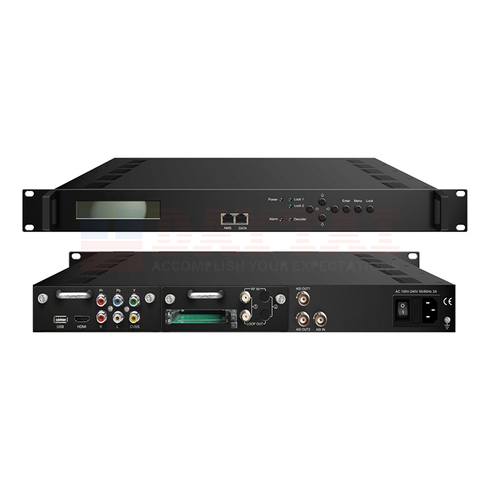

1U Case Satellite Cable Terrestrial Signal Audio Video Demodulation descramber Re-mux Decoding with BISS IRD
Short Description:
| Item | |
| Specification | |
| Input | |
| 1 x Tuner, F type1×ASI input for re-mux, BNC interface1xIP input for re-mux (UDP) | |
| Demodulating Section | |
| DVB-C | |
| Standard | J.83A(DVB-C), J.83B, J.83C |
| Input Frequency | 30 MHz~1000 MHz |
| Constellation | 16/32/64/128/256 QAM |
| DVB-(T) | |
| Input Frequency | 30MHz ~999.999 MHz |
| Bandwidth | 6/7/8 M bandwidth |
| DVB-S | |
| Input Frequency | 950-2150MHz |
| Symbol rate | 2-45Msps |
| Signal Strength | - 65- -25dBm |
| Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
| DVB-S2 (Version 1) | |
| Input Frequency | 950-2150MHz |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Symbol rate | QPSK 1~45Msps; 8PSK 2~30Msps |
| DVB-S2 (Version 2) | |
| Input Frequency | 950-2150MHz |
| Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Symbol rate | QPSK 1~45 Msps; 8PSK 2~30 Msps;16APSK 1~45 Msps; 32APSK 1-32 Msps |
| ATSC-T | |
| Input Frequency | 54MHz~858MHz |
| Bandwidth | 6M bandwidth |
| Descrambling | |
| CAM/CI Quantity | |
| 2 | |
| BISS Mode | |
| Mode 1, Mode E; up to 120Mbps | |
| Output | |
| IP Output | |
| 1*MPTS & 8*SPTS over UDP, RTP/RTSP.100Base-T Ethernet interface (unicast / multicast) | |
| 2×ASI | |
| BNC interface, mirrored out | |
| Decode Output | |
| Video Interface: 1xCVBS/YPbPr/HDMIVideo Decode: MPEG-2; MPEG4 AVC/H.264Resolution: 480i, 480p, 576i, 576p, 720p@50/59.94/60, 1080i@50/59.94/60Chroma: 4:2:0Audio Interface: 2 x Stereo/4xmono, HDMIAudio Decode: MPEG 1 Layer II, LC-AAC, HE-AACAudio Output Mode: Left, Right, Stereo, | |
| Low Latency | |
| 240Ms-320Ms | |
| System | |
| Local interface | |
| LCD + control buttons | |
| Remote management | |
| Web-server Management | |
| Language | |
| English | |
| Upgrade | |
| USB, web management | |
| General | |
| Power supply | |
| AC 100V~240V | |
| Dimensions | |
| 482*300*44.5mm | |
| Weight | |
| 3.5 kgs | |
| Operation temperature | |
| 0~45℃ |
