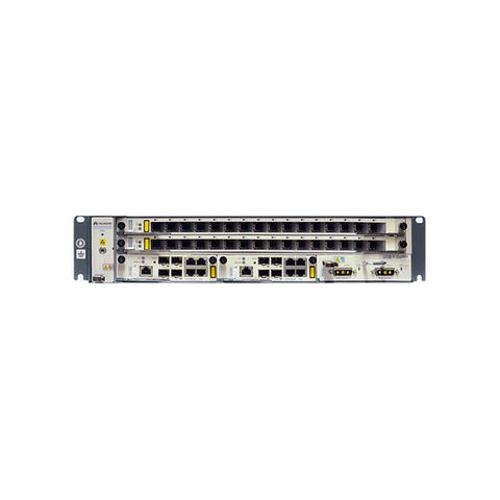

Huawei MA5608T Mini GPON OLT
Short Description:
| Control board | |
| SCUB | |
| Super Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover GE channel to the service board Environmental monitoring parameters Four SFP GE ports for upstream transmission or cascading |
| SCUF | |
| Super Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover GE channel to the service board Environmental monitoring parameters Four SFP GE ports for upstream transmission or cascading |
| SCUH | |
| Super Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover Load sharing Ethernet synchronization Built-in 2GB CF card 10GE/20GE channel to the service board Environmental monitoring parameters Supports the function of reading the temperature and the high-temperature alarm. Four SFP 10GE ports for upstream transmission or cascading |
| SCUN | |
| Super Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover Load sharing (supported in V800R011C00 and later versions) Centric management for GE remote extended subracks in FTTB or FTTC scenarios(supported in V800R012C00 and later versions) GE or 10GE channel to the service board Environmental monitoring parameters Four SFP GE ports for upstream transmission or cascading |
| MCUD | |
| Mini Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover Load sharing Synchronization with the Ethernet clock GE or 10GE channel to the service board Environmental monitoring parameters Seven alarm digital inputs (DIs) and one alarm digital output (DO) Temperature reading and high temperature alarming Monitoring and management of the fan tray Four SFP GE ports for upstream transmission or cascading |
| MCUD1 | |
| Mini Control Unit Board | System control and management unit Local and remote maintenance Active/standby switchover Load sharing Synchronous Ethernet GE or 10GE channel to the service board Environmental monitoring parameters Seven inputs of alarm digital parameters and one output of alarm digital parameters Temperature reading and high-temperature alarm Fan tray monitoring and management Two SFP+ 10GE ports and two SFP GE ports for upstream transmission or cascading One input of BITS clock signals and one input of BITS clock signals One input of 1PPS+TOD time signals and one output of 1PPS+TOD time signals Stratum-3 clock |
| Service board | |
| ADKM | |
| 64-port ADSL2+ Service Board | 64 channels of ADSL2+ service Not supporting the ISDN service Port protection SELT, MELT and DELT tests G.992.1/3/5 Annex B, Annex J G.INP re-transmission at the physical layer (V800R011C00 and later versions) Automatic power shutdown in case of a high temperature |
| ADPD | |
| 64-port ADSL2+ over POTS Service Board | 64-channel ADSL2+ over POTS access service (working with a splitter) 64-channel ADSL2+ access service Port protection 2-wire bonding SELT and DELT tests G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) G.INP re-transmission at the physical layer (V800R009C00 and later versions) Automatic power shutdown in case of a high temperature |
| ADPE | |
| 64-port ADSL2+ over POTS Service Board | 64-port ADSL2+ over POTS service Built-in 64-channel splitter, with the port impedance of 600 ohms Port protection 2-wire bonding SELT and DELT tests G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) G.INP re-transmission at the physical layer (V800R009C00 and later versions) Automatic power shutdown in case of a high temperature |
| ADPM | |
| 64-port ADSL2+ over POTS Service Board | 64-channel ADSL2+ over POTS access service Port protection Bonding of any number of ports in a group (a group consists of eight ports, starting from port 0) SELT, MELT and DELT tests G.992.1 Annex A, G.992.3 Annex A/L/M/J (EU32-EU64), G.992.5 Annex A/M/J (EU32-EU64) G.INP re-transmission at the physical layer ITU-T G.711, ITU-T G.723.1, and ITU-T G.729 codec Automatic power shutdown in case of a high temperature |
| ADQD | |
| 64-port ADSL2+ over ISDN Service Board | 64-channel ADSL2+ over ISDN access service (working with a splitter) 64-channel ADSL2+ access service Port protection 2-wire bonding SELT and DELT tests G.992.1/3/5 Annex B Automatic power shutdown in case of a high temperature The differences between the ADPD board and the ADQD board are as follows: The ADPD board supports the ADSL2+ over POTS service, and the board can work with the SPPL/SPPF board. The ADQD board supports the ADSL2+ over ISDN service, and the board can work with the SPPH board. |
| ASPB | |
| 64-port VOIP Subscriber Board | 64 channels of VoIP POTS access services Polarity reversal function on all the ports POTS metallic loop test (MELT) Automatic power shutdown in case of a high temperature |
| CAME | |
| 48-port ADSL2+&POTS Combo Board | 48-channel ADSL2+ and POTS access service Built-in 48-channel splitter, with the port impedance of 600 ohms Port protection Single-ended loop test (SELT) and dual-ended loop test (DELT) POTS metallic loop test (MELT) ITU-T G.711, ITU-T G.723.1, and ITU-T G.729 codec ITU-T T.30 fax and ITU-T T.38 fax G.992.1 Annex A/L/M (EU32 to EU64), G.992.3 Annex A/L/M (EU32 to EU64), and G.992.5 Annex A/M (EU32 to EU64) G.INP physical layer retransmission (V800R009C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| CSPA | |
| CESoP Service Process Board | SAToP processing of 64 channels of E1 signals Active/standby switchover or load sharing of the control boards 8 kHz clock channel from the H801CSPA board to the backplane, which is used to transmit the clock signals recovered from the service to the control board Automatic power shutdown in case of a high temperature |
| CVME | |
| 48-port VDSL2&POTS Combo Board | 48-channel VDSL2 and POTS access service Built-in 48-channel splitter, with the port impedance of 600 ohms Port protection Single-ended loop test (SELT) and dual-ended loop test (DELT) POTS metallic loop test (MELT) ITU-T G.711, ITU-T G.723.1, and ITU-T G.729 codec ITU-T T.30 fax and ITU-T T.38 fax G.992.1 Annex A/L/M (EU32 to EU64), G.992.3 Annex A/L/M (EU32 to EU64), and G.992.5 Annex A/M (EU32 to EU64) G.993.2-defined VDSL2 spectrum profile VDSL2 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles Two-pair VDSL2 PTM bonding of 8a, 8b, 8c, 8d profiles G.INP physical layer retransmission Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| DSRD | |
| 32-port ISDN Digital Subscriber Board | 32 channels of ISDN access services The H802DSRD board uses the 2B1Q encoding mode Automatic power shutdown in case of a high temperature |
| DSRE | |
| 32-port ISDN Digital Subscriber Board | 32 channels of ISDN access services The H802DSRE board uses the 4B3T encoding mode. Automatic power shutdown in case of a high temperature |
| ETHB | |
| Ethernet Service Access Board | Ethernet upstream transmission Ethernet cascading Extended subrack subtending (supported in V800R01200 and later versions) Eight SFP GE optical module or SFP GE electrical ports The emergency standalone function, specifically, the board serving as an upstream board to support interworking between upstream ports Intra-board aggregation and Inter-board aggregation NOTE: Do not support user access and mangement. |
| H802EDTB | |
| 16 port SHDSL and 16 port E1 Service Board | 16 channels of TDM SHDSL access services 16 channels of E1 access services 32 channels of PRI services 512 DSP channels, VoIP function, and PRI-to-H.248 signaling conversion by using the IUA protocol TDM PWE3 service CPE mode Automatic power shutdown in case of a high temperature Transparent transmission and convergence |
| H802GPBD | |
| 8-port GPON OLT Interface Board | Eight GPON SFP ports (one-fiber bi-directional port) A maximum of 1:128 split ratio for each GPON port Class B+ and class C+ optical modules Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module Optical performance monitor (OPM) Automatic power shutdown in case of a high temperature |
| H805GPBD | |
| 8-port GPON OLT Interface Board | Eight GPON SFP ports A maximum of 1:128 split ratio Class B+ and Class C+ optical modules Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module ONU-based queue shaping Optical performance monitor (OPM) Automatic power shutdown in case of a high temperature |
| GPFD | |
| 16-port GPON OLT Interface Board | Sixteen GPON SFP ports A maximum of 1:128 split ratio Class B+ and Class C+ optical modules Received signal strength indicator (RSSI) detection and controlled optical signal transmission of the optical module ONU-based queque shaping Temperature query and high temperature alarm Automatic power shutdown in case of a high temperature |
| OPFA | |
| FE P2P Optical Interface Board | 16-channels of FE optical signals Automatic power shutdown in case of a high temperature Synchronous Ethernet clock issuing |
| OPGD | |
| 48-port GE/FE Optical Interface Board | 48 (CSFP) or 24 (SFP) channels of GE/FE P2P optical access services Cascading and aggregation of DSLAMs or MDUs Synchronous Ethernet clock issuing supported by the GE port Two-channel one-fiber bi-directional CSFP, one-channel two-fiber bi-directional SFP, and one-channel one-fiber bi-directional SFP optical modules Automatic power shutdown in case of a high temperature |
| SHLM | |
| 16-port SHDSL.bis Service Board | 16 channels of SHDSL.bis access services G.991.2 Annex A, B, F, and G Wetting current 2-port, 3-port, and 4-port EFM bonding (in compliance with the IEEE 802.3ah-2004) 2-pair, 3-pair, and 4-pair bonding (compliance with G.991.2 and ETSI TS 101 524) 16-port IMA bonding MELT SHDSL regenerators management (V800R011C00 and later versions) Automatic power shutdown in case of a high temperature |
| SPUA | |
| Service Process Board | Switching capacity of 40 G Eight GE ports and two 10GE ports on the front panel SFP interface (GE) and SFP+ interface (10GE) Converging the ETH access services Enhanced Layer 2 functions such as the S+C forwarding Inter-board aggregation and Load sharing Automatic power shutdown in case of a high temperature Do not support the electrical module |
| SPUB | |
| MPLS service Process Unit Board | 10 Gbit/s MPLS switching capability Unidirectional 10 Gbit/s, bidirectional 5 Gbit/s when the control boards work in active/standby mode Bidirectional 10 Gbit/s when the control boards work in load sharing mode(V800R011C00 and later versions) Active/standby switchover of the control boards Load sharing of the control boards(V800R011C00 and later versions) Automatic power shutdown in case of a high temperature |
| TOPA | |
| TDM Traffic over PSN Board | Native TDM function (when the NH1A/O2CE daughter board is configured) CESoP function (when the EH1A/CSSA daughter board is configured) TDM signal upstream transmission through the E1 port (when the NH1A/EH1A daughter board is configured) TDM signal upstream transmission through the STM-1 optical port (when the O2CE/CSSA daughter board is configured) Automatic power shutdown in case of a high temperature |
| VCMM | |
| 48-port VDSL2 over POTS Service Board | 48-channel VDSL2 access service (working with a splitter) Port protection 2-pair VDSL2 bonding when the 8a, 8b, 8c, or 8d profile is used SELT, MELT and DELT tests G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles G.993.1/2 G.993.5-defined feature Vectoring feature G.INP physical layer retransmission Temperature query and high temperature alarm Automatic power shutdown in case of a high temperature |
| VDJM | |
| 48-port VDSL2 over ISDN Service Board | 48-channel VDSL2 over ISDN service Port protection SELT, DELT and MELT tests G.993.1/2 G.992.1/3/5 Annex B, Annex J 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles G.INP re-transmission at the physical layer (V800R011C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| VDMF | |
| 48-port VDSL2 over POTS Service Board | 48-channel VDSL2 over POTS access service (working with a splitter) 48-channel VDSL2 access service Port protection SELT and DELT tests G.993.1/2 G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles G.INP re-transmission at the physical layer (V800R009C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| VDNF | |
| 48-port VDSL2 over ISDN Service Board | 48-channel VDSL2 over ISDN access service (working with a splitter) 48-channel VDSL2 access service Port protection SELT and DELT tests G.993.1/2 G.992.1/3/5 Annex B 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| VDPD | |
| 64-port VDSL2 over POTS Service Board | 64-channel VDSL2 over POTS access service (working with a splitter) 64-channel VDSL2 over POTS service Port protection 2-pair VDSL2 PTM bonding when the 8a, 8b, 8c, or 8d profile is used Single-ended loop test (SELT) and dual-ended loop test (DELT) VDSL2 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles G.993.1/2 G.993.2-defined VDSL2 spectrum profile G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) G.INP physical layer retransmission (V800R012C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| VDPE | |
| 64-port VDSL2 over POTS Service Board | 64-channel VDSL2 over POTS service Built-in 64-channel splitter and 600-ohm port impedance Port protection Single-ended loop test (SELT) and dual-ended loop test (DELT) VDSL2 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles G.993.1/2 G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) G.INP physical layer retransmission (V800R009C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| VDPM | |
| 64-port VDSL2 over POTS Service Board | 64-channel VDSL2 over POTS access service (working with a splitter) 64-channel VDSL2 over POTS service Port protection Single-ended loop test (SELT) and dual-ended loop test (DELT) Metallic loop test (MELT) VDSL2 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles G.993.1/2 G.992.1 Annex A, G.992.3 Annex A/L/M (EU32-EU64), and G.992.5 Annex A/M (EU32-EU64) NOTE: The G.INP physical layer retransmission feature is not supported in bonding mode. G.INP physical layer retransmission (V800R009C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
| VDQM | |
| 64-port VDSL2 over ISDN Service Board | 64-channel VDSL2 over ISDN access service (working with a splitter) Port protection 2-pair VDSL2 bonding when the 8a, 8b, 8c, or 8d profile is used Single-ended loop test (SELT) and dual-ended loop test (DELT) Metallic loop test (MELT) VDSL2 8a, 8b, 8c, 8d, 12a, 12b, and 17a profiles ITU-T G.993.1/2, ITU-T G.992.1/3/5 G.INP physical layer retransmission (V800R012C00 and later versions) Temperature query and high-temperature alarm Automatic power shutdown in case of a high temperature |
