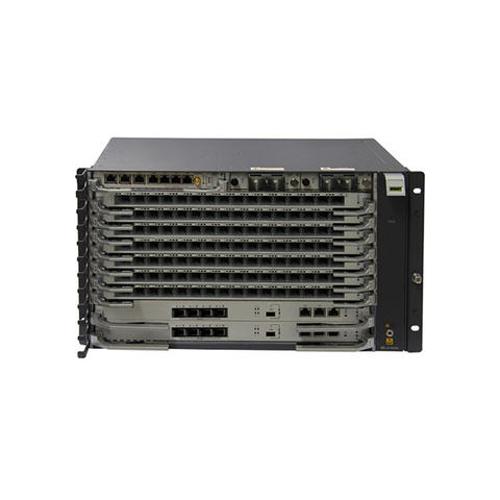

MA5800 FTTH GPON OLT MA5800-X15
Short Description:
| Item | |
| MA5800-X17 | |
| MA5800-X15 | |
| MA5800-X7 | MA5800-X2 |
| Dimensions (W x D x H) | |
| 493 mm x 287 mm x 486 mm | |
| 442 mm x 287 mm x 486 mm | |
| 442 mm x 268.7 mm x 263.9 mm | 442 mm x 268.7 mm x 88.1 mm |
| Maximum Number of Ports in a Subrack | |
| 272 x GPON/EPON | |
| 240 x GPON/EPON | |
| 112 x GPON/EPON | 32 x GPON/EPON |
| 816 x GE/FE | |
| 720 x GE/FE | |
| 336 x GE/FE | 96 x GE/FE |
| 136 x 10G GPON/10G EPON | |
| 120 x 10G GPON/10G EPON | |
| 56 x 10G GPON/10G EPON | 16 x 10G GPON/10G EPON |
| 136 x 10G GE | |
| 120 x 10G GE | |
| 56 x 10G GE | 16 x 10G GE |
| 544 x E1 | |
| 480 x E1 | |
| 224 x E1 | 64 x E1 |
| Switching Capacity of the System | |
| 7 Tbit/s | 480 Gbit/s |
| Ambient Temperature | -40°C to 65°C* |
| Working Voltage Range | |
| -38.4V DC to -72V DC | DC power supply: |
| Layer 2 Features | VLAN + MAC forwarding, SVLAN + CVLAN forwarding, PPPoE+, and DHCP option82 |
| Layer 3 Features | Static route, RIP/RIPng, OSPF/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF |
| MPLS & PWE3 | MPLS LDP, MPLS RSVP-TE, MPLS OAM, MPLS BGP IP VPN, tunnel protection 'switching, TDM/ETH PWE3, and PW protection switching |
| IPv6 | IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
| Multicast | IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2, MLD Proxy/Snooping, and VLAN-based IPTV multicast |
| QoS | Traffic classification, priority processing, trTCM-based traffic policing, WRED, traffic shaping, HqoS, PQ/WRR/PQ + WRR, and ACL |
| System Reliability | GPON type B/type C protection, 10G GPON type B protection, BFD, ERPS (G.8032), MSTP, intra-board and inter-board LAG, In-Service Software Upgrade (ISSU) of the control board, 2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control |
