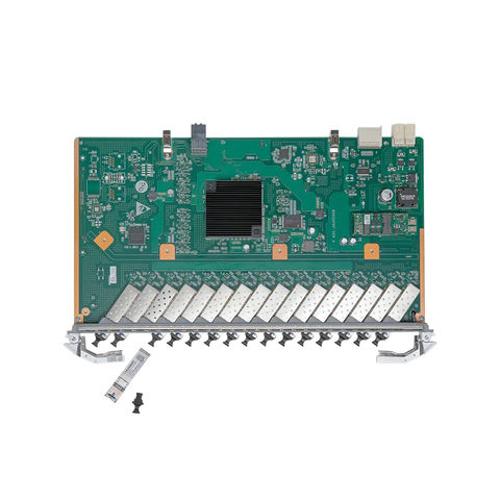

OEM GPHF OLT Service Board 16 port GPON OLT Interface Board B+ C+ C++ SFP MA5800-X2 X7 X15 GPON OLT Interface Board
Short Description:
| The GPHF board supports the following features and specifications: | |
| 16 GPON SFP ports | |
| A maximum of 1:128 split ratio | |
| Class B+/C+/C++ one-fiber bi-directional optical modules | |
| Received signal strength indicator (RSSI) detection and optical signal transmission control of the optical module | |
| ONU-based traffic shaping | |
| Temperature reading and high-temperature alarm | |
| Automatic power-off in case of high temperature | |
| Upstream and downstream forward error correction (FEC) | |
| Type B/Type C protection | |
| L3VPN and D-CCAP networking | |
| Rogue ONU detection | |
| L3VPN and D-CCAP networking | |
| Optical power budget of the GPON port | |
| o Class B+ optical module with a 28.5 dB power budget (used in most cases) | |
| o Class C+ optical module with a 32 dB budget (used for long-distance transmission) | |
| o Class C++ optical module with a 35 dB budget (used for long-distance transmission) | |
| Usage | |
| FTTC/B/D, D-CCAP, FTTH, FTTO/FTTM |
