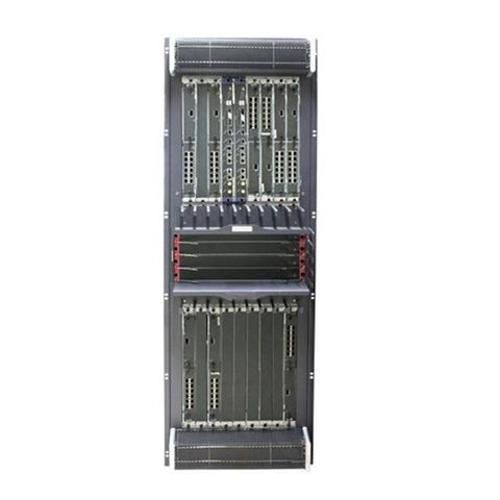

ME60 Series bras Router ME60-X16
Short Description:
| Specifications | ME60-X16 |
| Switching Capacity | 25.2 Tbit/s |
| Slots | 22 slots, including 2 MPUs (1:1 backup), 4 SFUs (3+1 backup), and 16 LPUs |
| Dimensions (W x D x H) | 442 mm x 650 mm x 1,420 mm (32U) |
| Maximum Power Consumption | 4,610W (120G)7,970W (240G) |
| Full Configuration Weight | 246 kg (120G)279 kg (240G) |
| BRAS | User access protocol: PPPoE, PPPoEoA, IPoE, IPoEoA, and PPPoA 802.1XUser authentication protocol: PAP, CHAP, MSCHAP, RADIUS, and HWTACACSUser accounting protocol: RADIUS, HWTACACS, and COPSUser authorization protocol: RADIUS, HWTACACS, and COPSPolicy protocol: COPS and COA |
| QoS | Weighted Random Early Detection (WRED), DS-TE capability with a maximum of eight CTs, five-level H-QoS scheduling, VLL/PWE3 QoS, and MPLS H-QoS.The last mile QoS.Multicast replication of IPoE access users |
| DAA | ME60s support Destination Address Accounting (DAA), providing refined subscriber management with differentiated service and accounting in IP networks. |
