Ftth Olt mini 4pon epon olt gigabit up-link port onu without sfp modules PX20+++ 4port olt
Short Description:
Product Name | HA7004S EPON OLT |
Wavelength | 1310(RX)/1490(TX) |
Optical power | +2.5~ +7dBm |
Receiving Sensitivity | -27dBm |
Maximum distance | 20km |
Maximum optic ratio | 1:64 |
Capacity | 4PON System, 256 ONUs |
MAC | 16K |

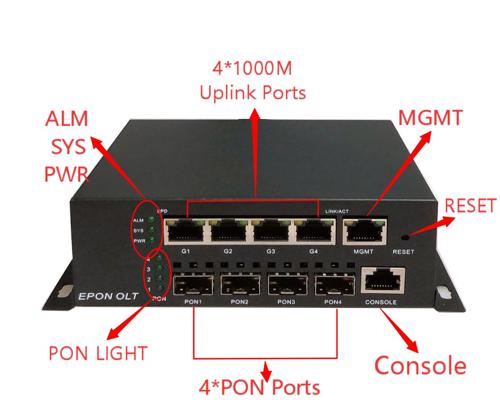

Port | 4 Gigabit SFP PON ports |
4 GE Uplink ports | |
1 FE management port | |
1 RS232 DB9 serial port | |
MTBF | 100000 hours |
Feature | Support IEEE802.3ah |
Support DBA with minimum1Kbps granularity adjustable | |
Support 1Gbps up link and down link symmetrical bandwidth | |
Support AES-128 encryption to each Logical Link Identifier | |
Support powerful OAM function, implement telnet management, maintenance and upgrade | |
Support auto discovery and auto register of ONU (real-time operation) | |
Standard | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
Support IEEE802.1Q VLAN | |
Support IEEE 802.1P QoS | |
Network management | Support GUI management based on SNMP (work with rack) |
Support WEB / CLI |
