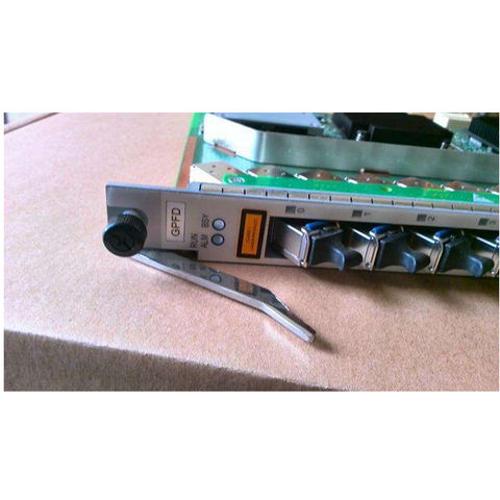

MA5608T GPON EPON OLT GPBD GPFD
Short Description:
| Item | |
| MA5603T | MA5608T |
| Supported cabinet | |
| Indoor cabinet: N66E-18Outdoor cabinet: F01D500, F01S300 | Indoor cabinet: N63E-22Outdoor cabinet: F01S200 |
| Board configuration | |
| 2 slots for control boards6 slots for service boards1 slot for the universal interface board2 slots for upstream interface boards2 slots for power interface boards. | 2 slots for control boards2 slots for service boards1 slots for the power interface board. |
| Switching capacity of the backplane bus | |
| 1.5 Tbit/s (H801MABO)2 Tbit/s (H802MABO) | 720 Gbit/s |
| Supported control board and its switching capacity | |
| SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing modeSCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing modeSCUB: 48 Gbit/sSCUF: 128 Gbit/s | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode |
| System Layer 2 packet forwarding rate | |
| SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing modeSCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing modeSCUB: 48 Gbit/sSCUF: 128 Gbit/s | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
| System reliability specifications | System: redundant configuration.System availability for the typical configuration: > 99.999%Mean time between failures (MTBF): about 45 years. NOTEDue to different network environments and different boards used by devices, the above-mentioned MTBF (45 years) of the is only for reference. The average repair time for field replaceable units (FRUs) is about 2 hours. |
| Maximum number of ADSL2+ ports in a subrack | |
| 384 | 128 |
| Maximum number of VDSL2 ports in a subrack | |
| 384 | 128 |
| Maximum number of EFM SHDSL ports in a subrack | |
| 192 | 64 |
| Maximum number of TDM SHDSL ports in a subrack | |
| 96 | 32 |
| Maximum number of POTS ports in a subrack | |
| 384 | 128 |
| Maximum number of ISDN BRA ports in a subrack | |
| 192 | 64 |
| Maximum number of ISDN PRA ports in a subrack | |
| 64 | 64 |
| Maximum number of GPON ports in a subrack | |
| 96 | 32 |
| Maximum number of 10G GPON ports in a subrack | |
| 48 | 8 |
| Maximum number of EPON ports in a subrack | |
| 96 | 32 |
| Maximum number of 10G EPON ports in a subrack | |
| 48 | 16 |
| Maximum number of P2P FE ports in a subrack | |
| 96 | |
| Maximum number of P2P GE ports in a subrack | |
| 288 | 96 |
| Maximum number of upstream ports (GE ports in the GIU slot) in a subrack | |
| 8 | - |
| Maximum number of upstream ports (10GE ports in the GIU slot) in a subrack | |
| 4 | - |
| Maximum number of upstream ports (PON ports in the GIU slot) in a subrack | |
| 2 | - |
| Maximum number of extended subracks connected to a master subrack | |
| 32 | - |
| Operating environment | |
| Operating temperature: -40°C to +65°COperating humidity:5% RH to 95% RHAtmospheric pressure: 61 kPa to106 kPaAltitude: ≤ 4000 m | Operating temperature:-40°C to +65°COperating humidity: 5% RH to 95% RHAtmospheric pressure: 61 kPa to106 kPaAltitude: ≤ 4000 m |
