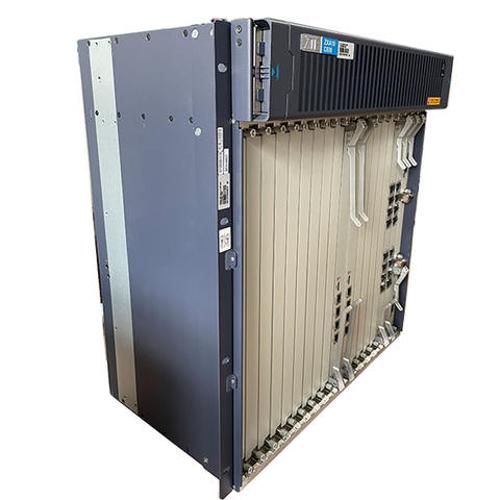

ZTE large-capacity OLT ZXA10 C600 GPON/10G PON
Short Description:
| Shelf configuration | ETSI 21″ shelf: 23 slots, IEC19″ shelf: 21 slots. 17 slots(21″)/15 slots(19″) for universal line cards 2 slots for switch & control cards 2 slots for power cards 1 slot for clock synchronization card 1 slot for FAN module |
| Subscriber card density | GPON card: 16 ports per card. XG-PON card: 16 ports per card. XGS-PON card: 16 ports per card. XG-PON & GPON Combo PON card: 16 Combo PON ports per card. XGS-PON & GPON Combo PON card: 16 Combo PON ports per card. Any-PON card: 16 Any-PON ports per card. 10G-EPON card: 16 ports per card. 10GE P2P card: 16 ports per card. GE/FE P2P card: 24/48 ports per card. |
| Uplink interface card | 16 * 10GE uplink per card. 8 * 10GE uplink per card. |
| GPON | GPON is compliant to ITU G.984.x. Support up to 1:128 optical split ratio. Support OLS. |
| XGPON | XG-PON is compliant to ITU G.987.x and G.988. Support up to 1:256 optical split ratio. Support OLS. Type B/C optical link protection. Support FEC. Support AES-128. |
| XGSPON | XGS-PON is compliant to ITU-T G.9807.1 and G.988. Support up to 1:256 optical split ratio. Support OLS. Type B/C optical link protection. Support FEC. Support AES-128. |
| Network security | Broadcast/multicast flooding rate limitation. Downstream ARP filtering. Forwarding panel protocol packet rate limit. DHCP anti-spoofing. Anti-DoS attacking. ARP/IP anti-spoofing. IP Source Guard. Basic ACL and IPv6 ACL. |
| System security | L4 port disable. CPU protocol packet rate limit and scheduling. |
| Combo PON | Each port integrates GPON optical module, XG PON/XGS-PON optical module and WDM1r. Support up to 1:128 optical split ratio. Support OLS. Type B/C optical link protection. Support FEC. Support AES-128. |
| Service security | DHCP service security. MAC address anti-drifting. Port isolation: Uplink port/User port. Broadcast packets separation based on VLAN. |
| Environment | Operating temperature: -40 ℃ ~ 65 ℃ for overall unit. Starting up temperature: ≥ -25℃. Operating humidity: 5% ~ 95%, non-condensing. Altitude: ≤ 4000 m. Air pressure: 70 kPa~106 kPa. |
| Power Supply | Working voltage: -48 V (±20%), or -60 V (±20%). |
| Basic VxLAN functions | RFC7348. Learning/aging MAC and VTEP IP. Multiple AC type: port(PON port, vport), S-Vlan, S-Vlan+C-Vlan. Support IPv6. VTEP port associated IGMP. ARP suppression. |
| Configuration functions | VLAN configuration. Status reporting. Information Query. Static MAC Configuration. ARP suppression Configuration. |
| Dimensions | 21" shelf: 486.1 mm (H) * 535 mm(21’’) (W) * 288.5 mm (D). 19" shelf: 486.1 mm (H) * 482.6 mm(19’’) (W) * 288.5 mm (D). 21" Empty shelf: 21 kg, full configuration: < 58 kg. 19" Empty shelf: 18 kg, full configuration: < 52 kg. |
