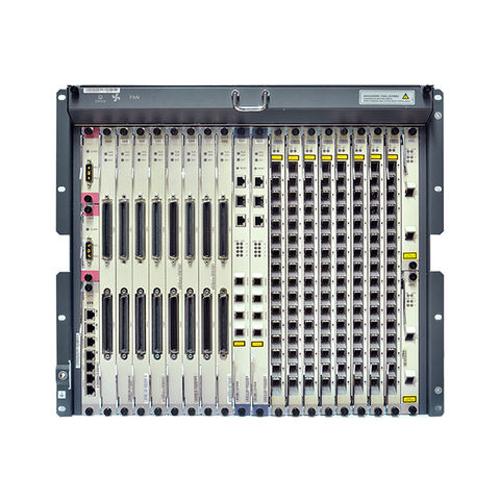

Huawei MA5600T GPON OLT can be regard as xDSL MSAN
Short Description:
| Item | |
| MA5600T | |
| MA5603T | MA5608T |
| (W/D/H) mm | |
| 490×275.8×447 | |
| 442×283.2×263 | 442×233.5×88 |
| Operating Environment | |
| Temperature: -25°C to +55°C Relative Humidity (RH): 5% to 95% | |
| Temperature: -40°C to +65°C RH: 5% to 95% | Temperature: -40°C to +65°C RH: 5% to 95% |
| Power Parameter | |
| Supports -48 V DC power input, dual-power supply protection, and working voltage range of -38.4 V to -72 V. | |
| Supports -48 V DC power input, dual-power supply protection, and working voltage range of -38.4 V to -72 V. | Supports DC and AC power supply modes, and dual-power supply protection. Provides battery for power backup when AC power is used. |
| Cabinet | |
| Indoor: N63E-22, N66E-18 Outdoor: F01D500 | |
| Indoor: N66E-18 Outdoor: F01D500, F01S300 | Indoor: N63E-22 Outdoor: F01S200 |
| configuration | |
| control board: 2 Service board: 16 Universal Interface board: 1 Upstream interface board: 2 Powerinterface board: 2 | |
| control board: 2 Service board: 6 Universal Interface board: 1 Upstream interface board: 2 Powerinterface board: 2 | control board: 2 Service board: 2 Powerinterface board: 1 |
| MTBF | |
| ≈45 years | |
| ≈45 years | ≈45 years |
| Switching Capacity of the Backplane Bus | |
| 3.2Tbit/s | |
| 1.5Tbit/s (H801MABO) 2Tbit/s (H802MABO) | 720Gbit/s |
| Switching Capacity of the Control Board | |
| SCUN/SCUK: 480Gbit/s (Standbymode), 960Gbit/s (Load-sharing mode) SCUH: 960Gbit/s (Standbymode), 1920Gbit/s (Load-sharing mode) 960Gbit/s | MCUD/MCUD1: 128Gbit/s (Standby mode), 256Gbit/s (Load-sharing mode) |
| Access Capacity | |
| • 128*10G GPON • 256*GPON • 768*GE/FE | |
| • 48*10G GPON • 96*GPON • 288*GE | • 8*10G GPON • 32*GPON • 96*GE |
| Maximum uplink port (GIU) | |
| • 4*GE • 4*10GE | |
| • 4*GE • 4*10GE | - |
