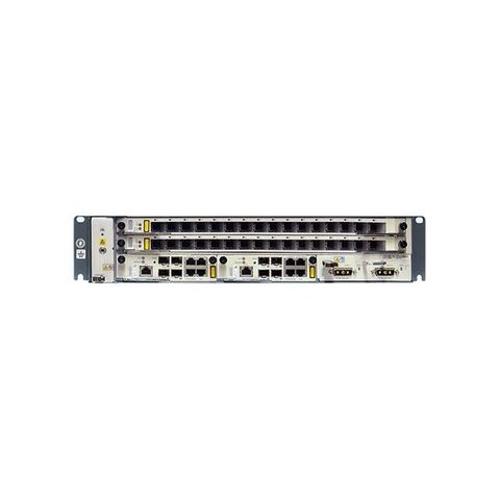

Mini GPON OLT GPFD GPBD MA5608T
Short Description:
| Board configuration | 2 slots for control boards 2 slots for service boards 1 slots for the power interface board. |
| Switching capacity of the backplane bus | 720 Gbit/s |
| Supported control board and its switching capacity | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode |
| System Layer 2 packet forwarding rate | MCUD/MCUD1: 128 Gbit/s in active/standby mode or 256 Gbit/s in load-sharing mode |
| Switching/Forwarding delay | Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs. |
| BER in full load | BER of a port when the port transmits data in full load < 10 e-7 |
| Maximum number of ADSL2+ ports in a subrack | 128 |
| Maximum number of VDSL2 ports in a subrack | 128 |
| Maximum number of EFM SHDSL ports in a subrack | 64 |
| Maximum number of TDM SHDSL ports in a subrack | 32 |
| Maximum number of POTS ports in a subrack | 128 |
| Maximum number of ISDN BRA ports in a subrack | 64 |
| Maximum number of ISDN PRA ports in a subrack | 64 |
| Maximum number of GPON ports in a subrack | 32 |
| Maximum number of 10G GPON ports in a subrack | 8 |
| Maximum number of P2P FE ports in a subrack | 96 |
