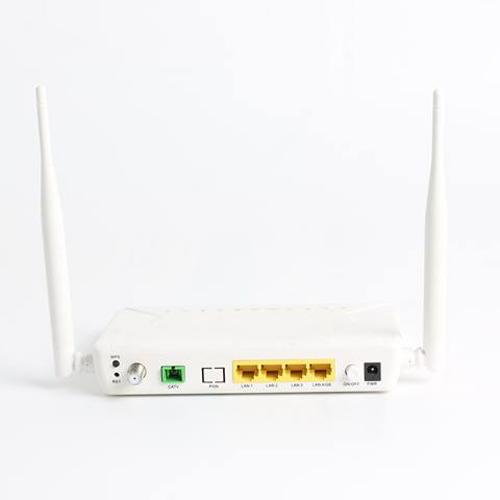

EPON ONU 3FE+1GE+CATV+WiFi wifi onu compatible with ftth olt solutions
Short Description:
| Parameter | Specification |
| PON Interface | 1 G/EPON port(EPON PX20+ and GPON Class B+) |
| Receiving sensitivity: ≤-27dBm | |
| Transmitting optical power: 0~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/APC Connector |
| LAN Interface | 1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
| CATV Interface | RF, WDM ,optical power : +2~-18dBm |
| Optical reflection loss: ≥45dB | |
| Optical receiving wavelength: 1550±10nm | |
| RF frequency range: 47~1000MHz, RF output impedance: 75Ω | |
| RF output level: 78dBuV | |
| AGC range: 0~-15dBm | |
| MER: ≥32dB@-15dBm | |
| Wireless | Compliant with IEEE802.11b/g/n, |
| Operating frequency: 2.400-2.4835GHz | |
| support MIMO, rate up to 300Mbps, | |
| 2T2R,2 external antenna 5dBi, | |
| Support: Multiple SSID | |
| Channel: Auto | |
| Modulation type: DSSS, CCK and OFDM | |
| Encoding scheme: BPSK, QPSK, 16QAM and 64QAM | |
| LED | 11 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN4、Worn、 Normal(CATV) |
| Push-Button | 3,For Function of Reset, WLAN, WPS |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） | |
| Power Supply | DC 12V/1A |
| Power Consumption | ≤6W |
| Dimension | 155mm×92mm×34mm（L×W×H） |
| Net Weight | 0.24Kg |
