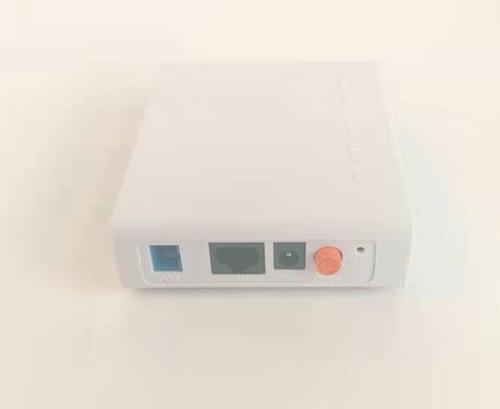

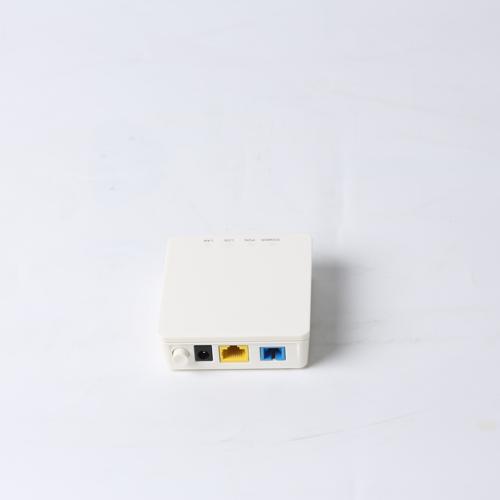

OEM Huawei Xpon FTTH ONU 1 Pon GE Pots ONT Stable EPON Network Access
Short Description:
| Technical item | Details |
| PON Interface | 1 GPON |
| Receiving sensitivity: ≤-28dBm | |
| Transmitting optical power: +1~+4dBm | |
| Transmission distance: 20KM | |
| Wavelength | TX: 1310nm, RX: 1490nm |
| Optical Interface | SC/UPC Connector |
| LAN Interface | 1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector |
| LED | 4 LED, For Status of PWR、LOS、PON、LAN |
| Push-Button | 1,For Function of Power on/off |
| Operating Condition | Temperature: 0℃~+50℃ |
| Humidity: 10%～90%（non-condensing） | |
| Storing Condition | Temperature: -30℃~+60℃ |
| Humidity: 10%~90%（non-condensing） | |
| Power Supply | DC 12V/0.5A |
| Power Consumption | <3W |
| Dimension | 90mmx82mmx26mm(L×W×H) |
| Net Weight | 0.1Kg |
