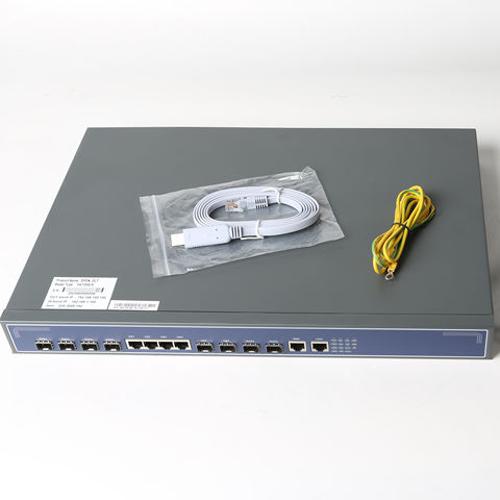

Dual power supply 1U rack type 4 PON ports OLT HA7304CX supplies 2 10G SFP+ upink ports. Without modules
Short Description:
| Parameter | Specification |
| EPON Standard | Comply with IEEE802.3ah,CTC 2.0,2. 1 and 3.0standard;Support IEEE 802. 1d (STP), 802. 1w (RSTP) and MSTP Spanning Tree Protocol,Support 802. 1p priority queue scheduling;Support NTP protocol,Support IEEE 802.3x full-duplex flow control;Support IEEE 802.3x flow control; |
| Interfaces | 4 SFP PON ports;4 1000M RJ45 uplink ports;2 1000M SFP uplink ports;2 10G SFP+ uplink ports |
| Security | Support PON line AES and triple churing encryption;Support ONU MAC address binding and filtering; |
| VLAN | Support 4095 VLAN additions, transparent transmission, conversion and deletion;Support VLAN Stacking (QinQ) |
| MAC address learning | Support 32K MAC addresses;Hardware-based wire-speed MAC address learning;Based on port, VLAN, link aggregation MAC restrictions; |
| Multicast | Support IGMP Snooping and IGMP Proxy, support CTC controllable multicast;Support IGMP v1/v2 and v3 |
| QoS | Support SP, WRR or SP + WRR scheduling algorithm; |
| Access Control Lists (ACL) | According to the destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet frame type, IP precedence, IP packets carried protocol type ACL rules set; |
| Support the use of the ACL rules for packet filtering; | |
| Support Cos ACL rule using the above settings, IP priority setting, mirroring, speed limit and redirect the application; | |
| Management P | Provide 10/ 100Base-T RJ45 out-band network management port |
| It can manage the in-band network through any GE uplink port Provide local configuration port | |
| Provide 1 CONSOLE port | |
| Data exchange | 3 layer Ethernet switching, switching capacity 128Gbps, to ensure non-blocking switching |
| Power Supply | 220VAC AC: 100V~240V,50/60Hz DC:-36V~-72V |
| Working Temperature | 0~55C |
| Dimension | 300.0mm(L)* 440.0mm(W)* 44.45mm(H) |
| Weight | 4.6 Kg |
