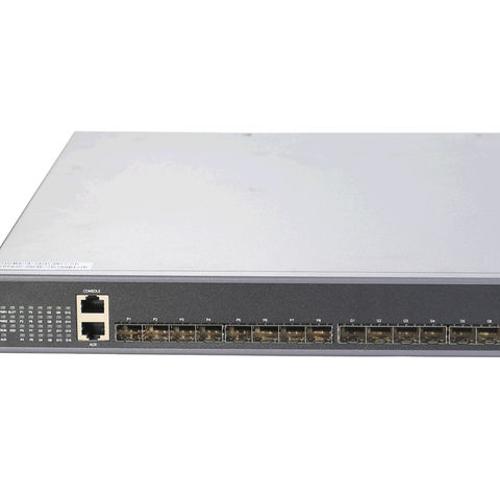

16 PON Fiber Optic Equipment FTTH 16 ports GPON OLT 8GE RJ45+ 4GE/ 10GE SFP Layer 3 olt
Short Description:
| PON standard. | GPON ITU-T G.984.x |
| PON interface | 16*GPON SFP Ports (Class C+), Receiving sensitivity: ≤ -30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +1 ~ +5dBmTransmission distance: 20KM. Max splitting ratio1:128 |
| Upstream 2.488G Downstream 1.244G | |
| Wavelength | Tx1310nm, Rx 1490nm |
| Uplink | 8*copper Ethernet ports 10/100/1000M auto-negotiation |
| 4*GE(SFP)/ 4*10GE (SFP+) auto-detection | |
| Layer 3 | Support static route, RIP v1/v2, OSFP v2, ARP proxy |
| Management Ports | 1*10/100BASE-T out-band port, 1*CONSOLE port |
| Management Mode | SNMP, Telnet, CLI, WEB |
| VLAN | Tag / Un-tag,VLAN transmission,QinQ |
| Operating condition | Operating temp: -5 ℃~ +55℃ |
| Storing condition | Storing temp: -40℃ ~ +85℃ |
| Humidity | 5~90%(non-condensing) |
| Power consumption | ≤85W |
| Dimension | 442mm×320mm×44mm（L×W×H） |
| Net weight | 4.5Kg |
