| Item |
| MA5800-X7 |

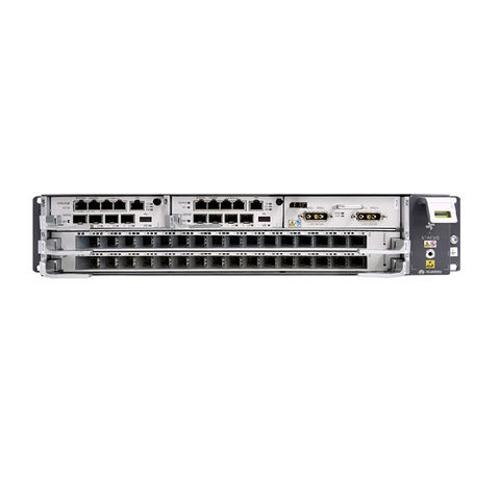

MA5800-X2 |
|
Dimensions
(W x D x H)
|
|
442 mm x 268.7
mm x 263.9 mm
|
442 mm x 268.7
mm x 88.1 mm
|
|
Maximum
Number
of Ports in
a Subrack
|
|
112 x
GPON/EPON
|
32 x GPON/EPON |
| 336 x GE/FE |
96 x GE/FE |
|
56 x 10G
GPON/
10G EPON
|
16 x 10G
GPON/
10G EPON
|
| 56 x 10G GE |
16 x 10G GE |
| 224 x E1 |
64 x E1 |
| |
|
|
Switching
Capacity
of the System
|
| 7 Tbit/s |
480 Gbit/s |
|
Ambient
Temperature
|
-40°C to 65°C* |
| Layer 2 Features |
VLAN + MAC forwarding, SVLAN +
CVLAN forwarding, PPPoE+, and DHCP option82
|
| Layer 3 Features |
Static route, RIP/RIPng, OSPF/OSPFv3,
IS-IS, BGP/BGP4+, ARP, DHCP relay, and VRF
|
| MPLS & PWE3 |
MPLS LDP, MPLS RSVP-TE, MPLS OAM,
MPLS BGP IP VPN, tunnel protection
switching, TDM/ETH PWE3,
and PW protection switching
|
| IPv6 |
IPv4/IPv6 dual stack, IPv6 L2 and L3 forwarding, and DHCPv6 relay |
| Multicast |
IGMP v2/v3, IGMP proxy/snooping, MLD v1/v2,
MLD Proxy/Snooping, and VLAN-based IPTV multicast
|
| QoS |
Traffic classification, priority processing,
trTCM-based traffic policing, WRED, traffic shaping,
HqoS, PQ/WRR/PQ + WRR, and ACL
|
| System Reliability |
GPON type B/type C protection,
10G GPON type B protection,
BFD, ERPS (G.8032), MSTP,
intra-board and inter-board LAG, In-Service Software Upgrade
(ISSU) of the control board,
2 control boards and 2 power boards for redundancy protection, in-service board fault detection and rectification, and service overload control
|
