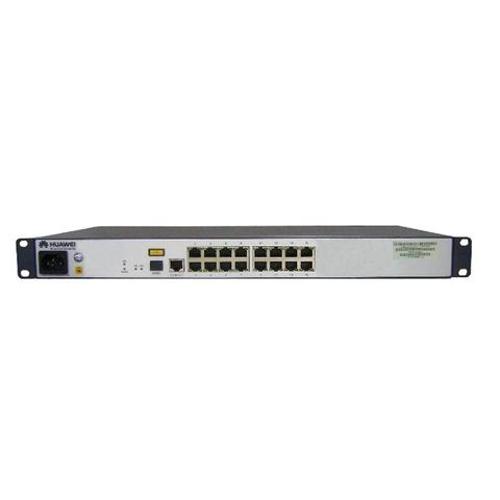

Huawei MA5626 24 ports MDU gpon onu
Short Description:
| Dimensions (H×W×D) | 43.6mm×442mm×220mm (24×FE and 16×FE) 43.6mm×250mm×220mm (8×FE) |
| Network-side port | Each of them provides two uplink ports that use the SFP optical modules and automatically adapt to GPON and GE modes. The two uplink ports can be configured as follows: •2×GPON •2×GE (optical) •1×GE (optical) + 1×GPON |
| User-side port | •24×FE •16×FE •8×FE |
| Operating temperature | -40°C to 55°C; startup at -25°C |
| Humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | No fans; passive cooling |
| Power supply | AC: 220V/110V |
| Lightning protection capability | LAN: 6kV; POTS: 4kV |
| Weight | 24 ports: 1.92kg 16 ports: 1.91kg 8 ports: 1.15kg |
