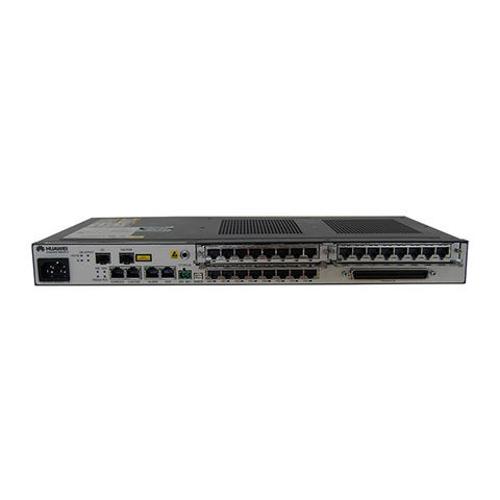

Huawei fiber optic onu MA5612 24 Ports GPON EPON
Short Description:
| Dimensions (H×W×D) | 43.6mm×442mm×245mm |
| Network-side port | The MA5612 provides two uplink ports that use the SFP optical modules and automatically adapt to multiple modes, including GPON and GE. The two uplink ports can be configured as follows: •2×GPON •2×GE (optical) •1×GE (optical) + 1×GPON |
| User-side port | The MA5612 supports fixed configurations and provides two slots. The fixed configurations are as follows: •2 GE (electrical) +6 FE (electrical) •2 GE (electrical) +6 FE (electrical) + 16 POTS •2 GE (electrical) +6 FE (electrical) + 16 POTS + 1 RF The two slots can house the following boards: •Board providing 8 FE ports •POTS board providing 16 ports •Board providing 8 E1 ports |
| Operating temperature | -40oC to 65oC; startup at -25oC |
| Humidity | 5% to 95% (non-condensing) |
| Heat dissipation mode | Providing fans for heat dissipation; the fans can adjust rotating speed intelligently |
| Lightning protection capability | GE/FE: 6 kV POTS: 4 kV |
| Power supply | AC: 220 V/110 V DC: -48 V |
| Backup power | 12 V battery |
| Weight | 3.7 kg (empty chassis) 4.22 kg (full configuration) |
