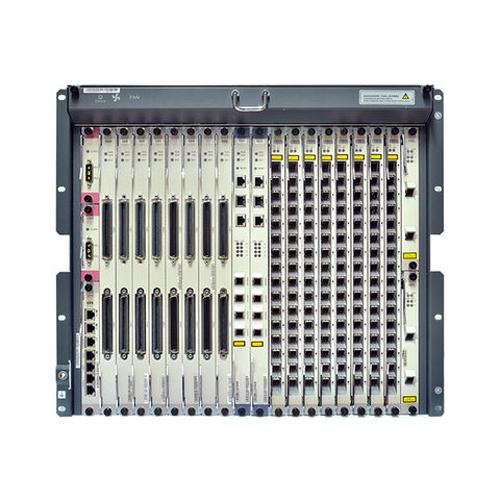

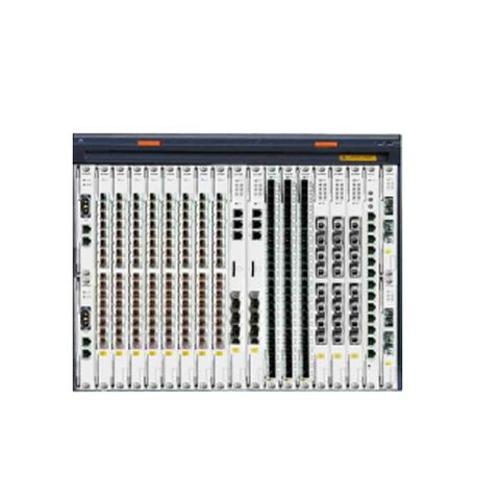

Huawei GPON OLT MA5600T with SCUN GPFD
Short Description:
| Specification | |
| MA5600T | |

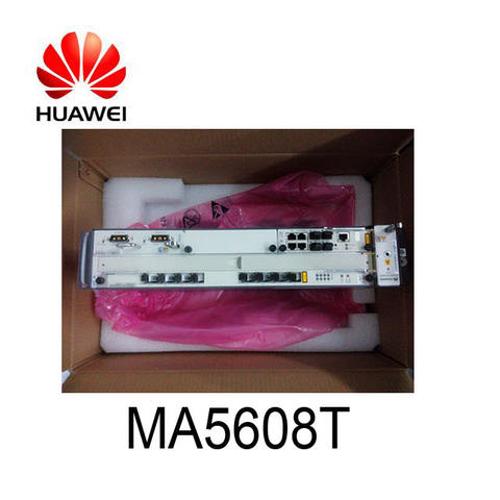

| MA5603T | MA5608T |
| Dimensions (H x W x D) | |
| 447 mm x 490 mm x 275.8 mm | |
| 263 mm x 442 mm x 283.2 mm | 88 mm x 442 mm x 233.5 mm |
| Operating Environment | |
| –25°C to +55°C 5% RH to 95% RH | |
| –40°C to +65°C 5% RH to 95% RH | |
| –40°C to +65°C 5% RH to 95% RH | |
| Power | |
| –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | |
| –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | |
| –48V DC power input Dual-power supply protection Operating voltage range of –38.4V to –72V | |
| Switching Capacity — Backplane Bus | |
| 3.2 Tbit/s | |
| 1.5 Tbit/s | 720 Gbit/s |
| Switching Capacity — Control Board | |
| 1,920 Gbit/s | |
| 960 Gbit/s | 512 Gbit/s |
| Access Capacity | |
| 64 x 10G GPON 256 x GPON 768 x GE | |
| 24 x 10G GPON 96 x GPON 288 x GE | 8 x 10G GPON 32 x GPON 96 x GE |
| Port Type | Upstream ports: 10 GE optical and GE optical/electrical ports Service ports: GPON optical port, P2P FE optical port, P2P GE optical port, and Ethernet optical port |
| System Performance | Layer 2/Layer 3 line-rate forwarding Static route, RIP, OSPF, and MPLS Clock synchronization schemes: BITS, E1, STM-1, Ethernet clock synchronization, 1588v2, and 1PPS + ToD Maximum split ratio of 1:256 Maximum logical distance between devices: 60 km |
