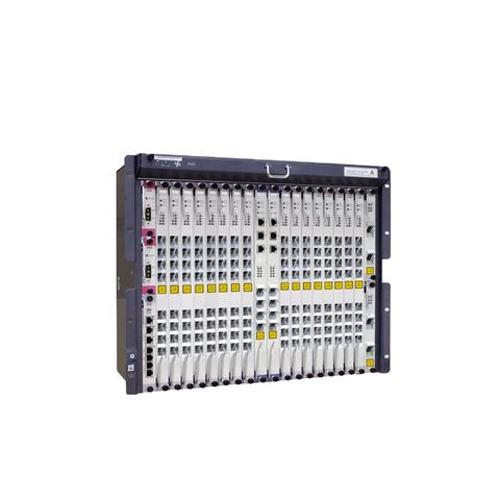

Original Huawei MA5800 series GPON EPON OLT MA5800-X17
Short Description:
| Model | |
| MA5800-X17 | MA5800-X7 |
| Switching Capacity | |
| 7 Tbit/s | 7 Tbit/s |
| MAC Addresses | |
| 256K | 256K |
| ARP/router table | |
| 64K | 64K |
| GPON Ports | |
| 272 | 112 |
| XG-PON Ports | |
| 136 | 56 |
| GE/FE Ports | |
| 816 | 336 |
| 10GE Ports | |
| 136 | 56 |
| Dimensions | |
| 486*533*286mm | 264*442*242mm |
| Operating temperature | |
| Indoor cabinet with 1 subrack: -40℃ to +65℃ | –40℃ to +65℃ |
| DC Power Supply | |
| Indoor cabinet with 2 subracks: -40℃ to +55℃ | -38.4 to -72 V |
| GPON Board | 16 ports with Class B+/ C+ SFP optical modules; eOTDR; 40 km differential reach; 4-level HQoS; 1588V2 |
| XG-PON Board | 8 ports with SFP+ optical modules; 40 km differential reach; 4-level HQoS; 1588V2 |
| Ethernet GE/FE Board | 48*FE/GE (CSFP interface) or 24*FE/GE (SFP interface); SyncE and 1588v2 |
| Ethernet 10GE Board | 8* 10 GE (SFP+ interface) or 8* GE (SFP/eSFP interface); SyncE and 1588v2 |
| Layer 2 Function | VLAN+MAC forwarding, SVLAN+CVLAN forwarding, PPPoE Plus, DHCP option82 |
| Layer 3 Function | Static route, RIP, OSFP/OSPFv3, IS-IS, BGP/BGP4+, ARP, DHCP relay, VRF |
| MPLS&PWE3 | LDP, RSVP-TE, MPLS OAM, tunnel PS, TDM/ETH PWE3, PW Redundancy, MPLS BGP IP VPN |
| IPv6 | Dual-stack IPv4 and IPv6, IPv6 Layer2 and Layer 3 forwarding, DHCPv6 relay |
