Item
|

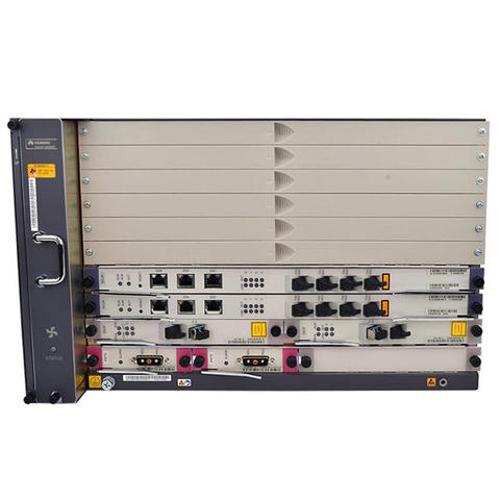

MA5603T
|
|
Supported cabinet
|
Indoor cabinet: N66E-18
Outdoor cabinet: F01D500, F01S300
|
|
Board configuration
|
2 slots for control boards
6 slots for service boards
1 slot for the universal interface board
2 slots for upstream interface boards
2 slots for power interface boards.
|
|
Switching capacity of the backplane bus
|
1.5 Tbit/s (H801MABO)
2 Tbit/s (H802MABO)
|
|
Supported control board and its switching capacity
|
SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
|
|
System Layer 2 packet forwarding rate
|
SCUN: 480 Gbit/s in active/standby mode or 960 Gbit/s in load-sharing mode
SCUH: 960 Gbit/s in active/standby mode or 1920 Gbit/s in load-sharing mode
SCUB: 48 Gbit/s
SCUF: 128 Gbit/s
|
|
Switching/Forwarding delay
|
Short forwarding delay: The 100 Mbit/s Ethernet port sends the 64-byte Ethernet packets at a delay shorter than 20 μs.
|
|
BER in full load
|
BER of a port when the port transmits data in full load < 10 e-7
|
|
System reliability specifications
|
System: redundant configuration.
System availability for the typical configuration: > 99.999%
|
|
ADSL2+ ports in a subrack
|
≤384
|
|
VDSL2 ports in a subrack
|
≤384
|
|
EFM SHDSL ports in a subrack
|
≤192
|
|
TDM SHDSL ports in a subrack
|
≤96
|
|
POTS ports in a subrack
|
≤384
|
|
ISDN BRA ports in a subrack
|
≤192
|
|
ISDN PRA ports in a subrack
|
≤64
|
|
GPON ports in a subrack
|
≤96
|
