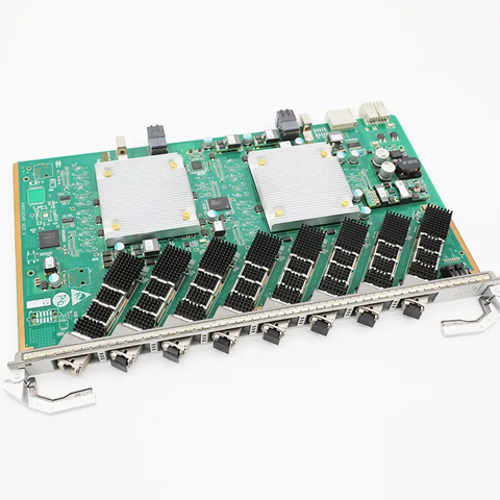

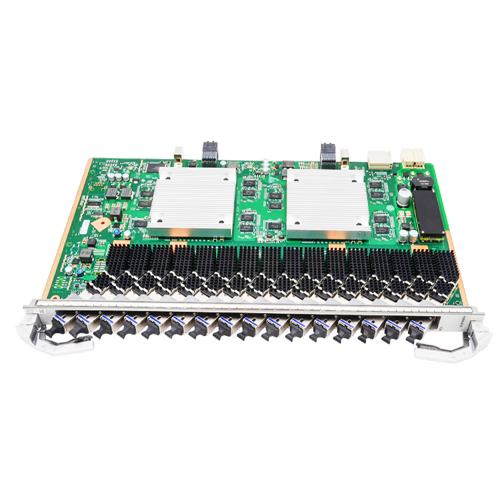

16 ports 10G XG-PON CGUF CGHF CSHF fiber device MA5800 OLT Board H901CGUF for huawei ma5800-x2 ma5800-x7 ma5800-x15 ma5800-x17
Short Description:
| Specification | CGHF |
| Port quantity | 16 |
| MAX Split ratio | 1: 256 |
| Forwarding Rate | 200Gbit/s |
| Rate model | Asymmetric Rate Model |
| Maximum Number of T-CONT | GPON:1024 XG-PON:2048 |
| Maximum Number of Service Flows Supported by the Board | 16352 |
| Maximum frame length | 2052 bytes |
| Maximum Number of MAC | 131072 |
| Maximum differential fibre distance (km) | 40 |
| Board supporting downstream FEC | Yes |
| Board supporting upstream FEC | Yes |
| CAR | Yes |
| D-CCAP | No |
| Temperature query and high temperature alarm | Yes |
| Automatic power shutdown in case of a high temperature | Yes |
| Rogue ONT detection | Yes |
| 1588v2 | Yes |
| High temperature automatic concern | Yes |
| Rogue ONT Detection and Isolation Support | Yes |
| Working temperature | -40℃~+65℃ |
| Maximum Power waste | 61w |
