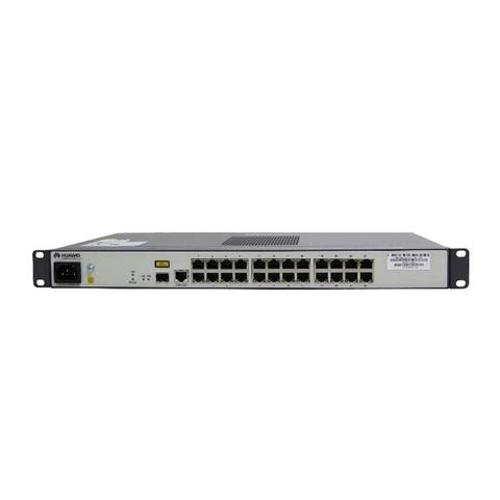

MA5821 Wifi Huawei GPON ONU
Short Description:
| Specifications | |
| MA5818 | |
| MA5821 | |
| MA5822 | MA5898 |
| Dimensions (H x W x D) | |
| 88.1 mm x 482.6 mm x 245 mm | |
| 43.6 mm x 250 mm x 18 0 mm (8 FE) 43.6 mm 442 mm x 220 mm (16 FE/24 FE) | |
| 43.6 mm x 442 mm x 220 mm | 43.6 mm 442 mm x 220 mm |
| Operating Environment | |
| –40℃ to +65℃ 5% RH to 95% RH | |
| –40℃ to +65℃ 5% RH to 95% RH | |
| –40℃ to +65℃ 5% RH to 95% RH | |
| –40℃ to +65℃ 5% RH to 95% RH | |
| Power | |
| DC: –38.4V to –72V 90V to 264V AC Backup power supply:–43.2V to –52V DC | |
| AC: 220V | |
| AC: 220V | 220V (AC) + backup (2V DC) DC: –48V |
| Network-side Port | |
| One SFP optical port 10G PON or PON (auto-negotiation) | |
| One SFP optical port 10G PON or PON (auto-negotiation) | |
| One SFP optical port 10G PON or PON (auto-negotiation) | |
| One SFP optical port 10G PON or PON (auto-negotiation) | |
| User-side Port | |
| Available service ports: GE, FE, ADSL2 + VDSL2, POTS 8a, 8b, 8c, 8d, 12a, 12b, 17a spectrum profiles | |
| 8 FE 16 FE 24 FE | |
| 8 FE + 8 POTS 16 FE + 16 POTS 24 FE + 24 POTS | 4 GE + 8 FE 4 GE + 8 E1 2 GE (electrical) + 2 GE (optical) + 8 FE 2 GE (electrical) + 2 GE (optical) + 8 E1 |
| Surge Protection | |
| Power port: 6 kV DSL/POTS/ISDN: 4 kV | |
| Power port: 6 kV FE: 6kV | |
| Power port: 6 kV FE: 6 kV | Power port: 6 kV FE: 6 kV POTS: 4 kV |
