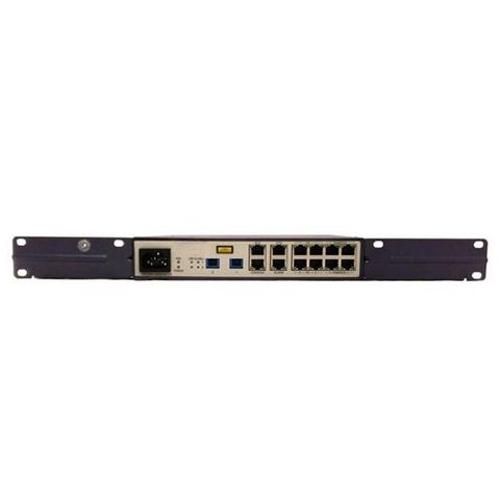

MDU MA5621A Multi-Service Access 2 Gpon ONU
Short Description:
| SmartAX MA5621A | |
| Type | Function |
| Ports | l Provides one uplink port in GPON mode l FE electrical port l RS485 serial port |
| Layer 2 management | l MAC address management l Virtual local area network (VLAN) management l Flow bundle l Layer 2 forwarding policies − SVLAN+MAC forwarding − SVLAN+CVLAN forwarding l Layer 2 isolation l Layer 2 bridging l Transparent transmission of protocol packets |
| Quality of service (QoS) | l Priority processing l Congestion management l Early drop l Traffic policing l Service priority tagging l Queue scheduling l Queue buffer l Traffic shaping l Access control list (ACL) policies |
| Emulation service | l Point-to-Point Protocol over Ethernet (PPPoE) dialup service emulation l Dynamic Host Configuration Protocol (DHCP) dialup service emulation l Multicast service emulation |
| Layer 3 features | l VLAN Layer 3 interface l Address Resolution Protocol (ARP) l Static route |
| Networking features | l Ethernet OAM l GPON type B protection |
| Subscriber security | l Anti-MAC address flapping l Subscriber isolation l Ring check |
| System security | l Destination IP address filtering l Source MAC address filtering l Destination MAC address filtering l Anti-denial of service (DoS) attacks l Anti-IP address attacks l Anti-Internet Control Message Protocol (ICMP) packets attacks l Source route filtering l Firewall l Blacklist |
| Operation and maintenance security | l User account and password management l Simple Network Management Protocol v3 (SNMPv3)-based authentication, encryption, and access control l Setting of independent security administrator l Encryption for file transfer l Encryption for remote management and connection l Security event logging |
| Line security | Advanced Encryption Standard (AES) 128 encryption for GPON downstream transmission |
| Operation and maintenance features | l Local operation and maintenance l Remote operation and user management l Version and data management l Device exception management |
