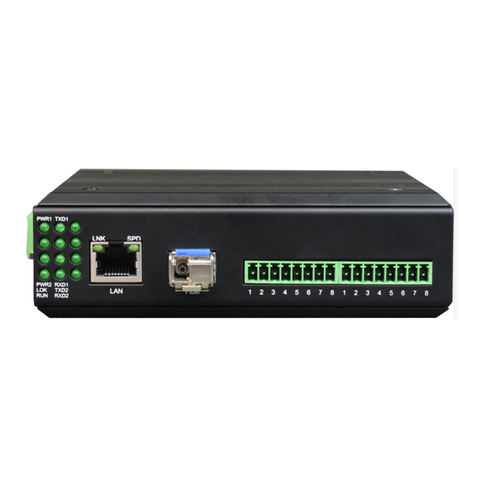

Serial RS485 RS422 RS232 To Ethernet Industrial Rail 2 Channel Serial Port Server
Short Description:
| 10/100M Ethernet interface | |
| protocol | IEEE 802.3ab, IEEE 802.3z |
| rate | 10/100M adaptive, full/half duplex adaptive |
| MAC address capacity | 4096 addresses |
| physical interface | RJ45 |
| serial interface | |
| standard | EIA/TIA-232 RS-232 (ITU-T V.28)EIA/TIA-422 RS-422 (ITU-T V.11)EIA/TIA-485 RS-485 (ISO/IEC8284) |
| serial interface | RS-422: TxD+ TxD- RxD+ RxD- GNDRS-485 4 wires: TxD+ TxD- RxD+ RxD- GND RS-485 2 wires: A( corresponding to TX+) B( corresponding to TX-) GNDRS-232: RXD TXD GND |
| environmental indicators | |
| working temperature | -40℃—+85℃ |
| storage temperature | -40℃—+85℃ |
| working humidity | 0%—95%(no condensation) |
| MTBF | >100000 hours |
