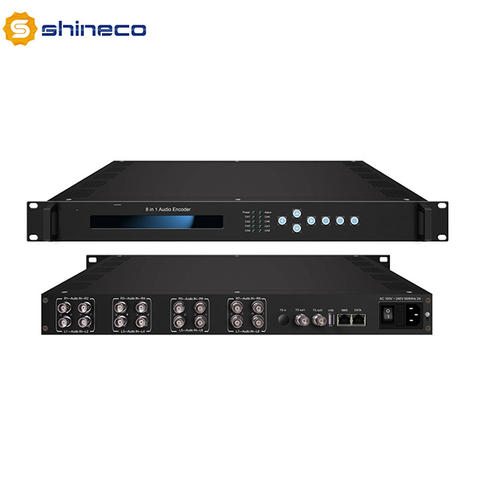

FM Station Audio Encoder

Short Description:


Product Detail

Audio Encode
Interface 8 pairs of unbalanced stereo / 16 mono audio inputs, BNC interface
Encoding Format MPEG1 Layer 2
Audio Gain -20 ~ +6dB
Sampling Rate 48KHz
Bit-rate 32/48/56/64/80/96/112/128/160/192/224/256/320/384Kb/s (each channel)
 Stream output 2*ASI output, BNC interface
 System LCD/keyboard operating, web-based NMS manage
 Miscellaneous
Dimension 482mm×455mm×44mm (W× L× H)
Approx weight  4kg
Temperature 0~45℃ (work),  -20~80℃(Storage)
Power AC 100V-220V±10%, 50/60Hz
Consumption 25W
