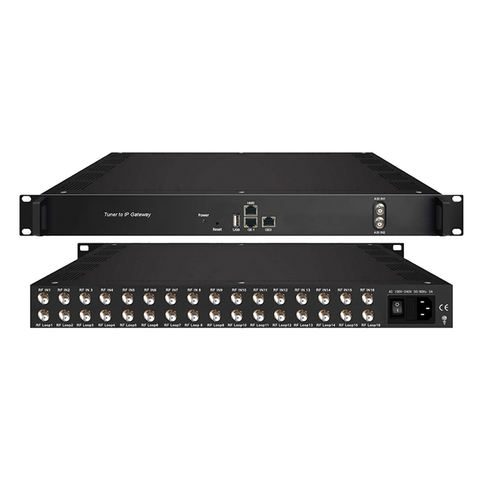

Tuner to IP Gateway 8 16Way ATSC DVB-S2 Dvb-s2 Digital Rf Tv Catv Modulator
Short Description:
| Item | |
| Specification | |
| Input | |
| Optional 1:16 tuners input +2 ASI input---SPTS outputOptional 2:14 tuners input +2 ASI input --- MPTS outputOptional 3:16 tuners input --- MPTS output | |
| Tuner Section | |
| DVB-C | |
| Standard | |
| J.83A(DVB-C), J.83B, J.83C | |
| Frequency In | |
| 30 MHz~1000 MHz | |
| Constellation | |
| 16/32/64/128/256 QAM | |
| DVB-T/T2 | |
| Frequency In | |
| 30MHz ~999.999 MHz | |
| Bandwidth | |
| 6/7/8 M bandwidth | |
| DVB-S/S2 | |
| Input Frequency | |
| 950-2150MHz | |
| Symbol rate | |
| DVB-S: QPSK 2~45Mbauds;DVB-S2:QPSK1~45Mbauds, 8PSK 2~30Mbauds | |
| Code rate | |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Constellation | |
| QPSK, 8PSK | |
| ISDB-T | |
| Input Frequency | |
| 30-1000MHz | |
| ATSC | |
| Input Frequency | |
| 54MHz~858MHz | |
| Bandwidth | |
| 6M bandwidth | |
| Output | |
| 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 aredifferent), Unicast and Multicast | |
| 16 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | |
| BISS Descrambling | |
| Mode 1, Mode E (Up to 850Mbps) (descramble individual program) | |
| Miscellaneous | |
| Dimension | |
| 482mm×410mm×44mm (W×L×H) | |
| Approx weight | |
| 3.6kg | |
| Environment | |
| 0~45℃(work)；-20~80℃（Storage） | |
| Power requirements | |
| 100~240VAC, 50/60Hz | |
| Power consumption | |
| 20W |
