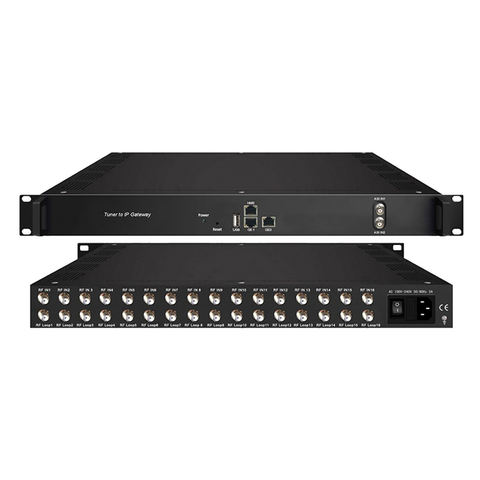

Tuner demodulation Gateway 16 Channel ATSC Tuner to IP Gateway
Short Description:
| Item | |
| Specification | |
| Input | |
| Optional 1:16 tuners input +2 ASI input---SPTS outputOptional 2:14 tuners input +2 ASI input --- MPTS outputOptional 3:16 tuners input --- MPTS output | |
| Tuner Section | |
| Multi-mode tuners switchable(New Type) | |
| DVB-C | |
| Frequency In | 60~890MHz |
| Standard | J.83A(DVB-C), J.83B, J.83C |
| Constellation | 16/32/64/128/256 QAM |
| DVB-T/(T) | |
| Frequency In | 60~890MHz |
| Bandwidth | 6/7/8 M bandwidth |
| ISDB-T | |
| Frequency In | 60~890MHz |
| Version 1 | |
| DVB-S | |
| Frequency In | 950-2150MHz |
| Symbol rate | 1~45 Msps |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| DVB-S2 | |
| Frequency In | 950-2150MHz |
| Symbol rate | 1~45 Msps |
| FEC | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK |
| Version 2(New Type) | |
| DVB-S | |
| Frequency In | 950~2150MHz |
| Symbol rate | 0.5~45Msps |
| Signal Strength | - 65- -25dBm |
| FEC | 1/2, 2/3, 3/4, 5/6, 7/8 |
| Constellation | QPSK |
| Max input bitrate | ≤125 Mbps |
| DVB-S2 | |
| Frequency In | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps32APSK: 0.5~34Msps; |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 8PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/10 16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 32APSK: 3/4, 4/5, 5/6, 8/9, 9/10 |
| Constellation | QPSK, 8PSK, 16APSK, 32APSK |
| Max input bitrate | ≤125 Mbps |
| DVB-S2X | |
| Frequency In | 950~2150MHz |
| Symbol rate | QPSK/8PSK /16APSK :0.5~45 Msps8APSK: 0.5~40Msps32APSK: 0.5~34Msps |
| FEC | QPSK: 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 13/45, 9/20, 11/208PSK: 3/5, 2/3, 3/4, 5/6, 8/9, 9/108APSK: 5/9-L, 26/45-L16APSK: 2/3, 3/4, 4/5, 5/6, 8/9, 9/10, 1/2-L, 8/15-L, 5/9-L, 26/45, 3/5, 3/5-L, 28/45, 23/36 , 2/3-L, 25/36, 13/18, 7/9, 77/9032APSK: 3/4, 4/5, 5/6, 8/9, 9/10, 2/3-L, 32/45, 11/15, 7/9 |
| Constellation | QPSK, 8PSK, 8APSK, 16APSK, 32APSK |
| Max input bitrate | ≤125 Mbps |
| ATSC | |
| Frequency In | 54~858MHz |
| Bandwidth | 6M bandwidth |
| Constellation | 8VSB |
| BISS Descrambling | |
| Mode 1, Mode E (Up to 850Mbps) (descramble individual program) | |
| Output | |
| 512 SPTS IP mirrored output over UDP and RTP/RTSP protocol through GE1 and GE2 port (IP address and port number of GE1 and GE2 aredifferent) , Unicast and Multicast | |
| 8 MPTS IP output (for Tuner/ASI passthrough) over UDP and RTP/RTSP protocol through GE1 and GE2 port, Unicast and Multicast | |
| System | |
| Web based management | |
| Ethernet software upgrade | |
| Miscellaneous | |
| Dimension | |
| 482mm×410mm×44mm(W×L×H) | |
| Approx weight | |
| 3.6kg | |
| Environment | |
| 0~45℃(work)；-20~80℃（Storage） | |
| Power requirements | |
| 100~240VAC, 50/60Hz | |
| Power consumption | |
| 20W |
