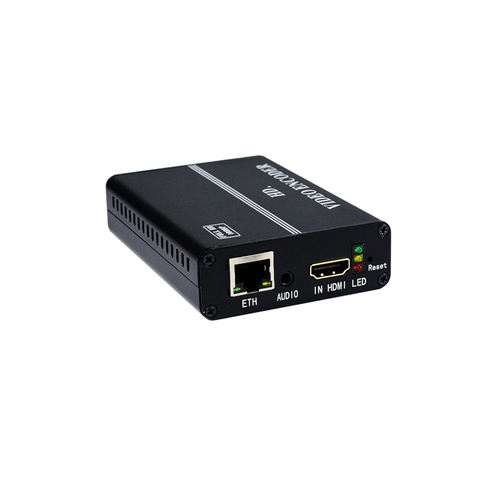

hdmi to ip live streaming video encoder
Short Description:
| Video | Video compression: H.264/AVC High Profile Level 4.0 Video inputs: HD-MI(support HDCP protocol), VGA, CVBS, SDI Analog video input mode: PAL, NTSC Resolution: 1920*1080_60P, 1920*1080_60i,1920*1080_50i, 1280*720_60P, 1280*720_50P, Bit-rate: 0.8 ~ 12Mbps, CBR/VBR Video pre-processing: De-interlacing, Noise reduction, Sharpen |
| Audio | Audio compression: AAC, MP3 Sampling rate: Adaptive, output sample rate optional Sampling accuracy: 24-bit Bit Rate: 32K,44.1K,48K,64K,96K,128K,160K,192K Encoding bit rate: 64 ~ 384Kbps |
| IP output | Transport protocol: TS over IP output, RTP/RTMP/RTSP/HTTP/UDP protocol |
| System | Protocols: HTTP,UDP,RTSP,RTMP,ONVIF Configuration Interface: Web operation Upgraded: Can be via network for software upgraded. Connector: RJ45, 1000M Ethernet interface. |
| Physical and power | Voltage: 12V DC Consumption: 5W Operating temperature: 0~50°C Dimensions: 170mm(W)*130mm(D)*33mm(H)(for 3U, mini type will be more small ) Weight: 0.5Kg/pc |
