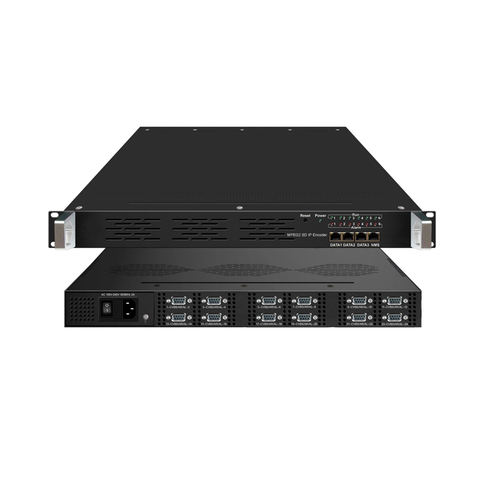

Cable TV Digital Encoder 8 IN 1 Encoder 24 Channel Encoder
Short Description:
| Input | 8 CVBS inputs , RCA interface12 CVBS inputs , RCA interface24 CVBS inputs , RCA interface |
| Video | |
| Resolution | 720×480_60i, 544×480_60i, 352×480_60i352×240_60i,320×240_60i,176×240_60i, 176×120_60i |
| Encoding | MPEG-2 |
| Bit-rate | 0.5Mbps~8Mbps each channel |
| Rate Control | CBR |
| GOP Structure | IBBP |
| Advanced Pretreatment | De-interlacing, noise reduction |
| Audio | |
| Encoding | MPEG-1 Layer 2, AC3(2.0) |
| Sampling rate | 48KHz |
| Resolution | 24-bit |
| Bit-rate | 64Kbps,128Kbps,192kbps,256kbps,320kbps,384kbps each channel |
| Multiplexing | |
| Function | PID remapping (automatically or manually) |
| Stream output | 1 ASI as copy of MPTS ( 8/12 CVBS and 24 CVBS input with MPTS output)IP (MPTS/SPTS) output over UDP/RTP/RTSP |
| System function | Network management (WEB) |
| Miscellaneous | |
| Dimension(W×L×H) | 482mm×410mm×44mm |
| Approx weight | 8kg |
| Environment | 0~45℃(work);-20~80℃(Storage) |
| Power requirements | AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
| Power consumption | 20W |
