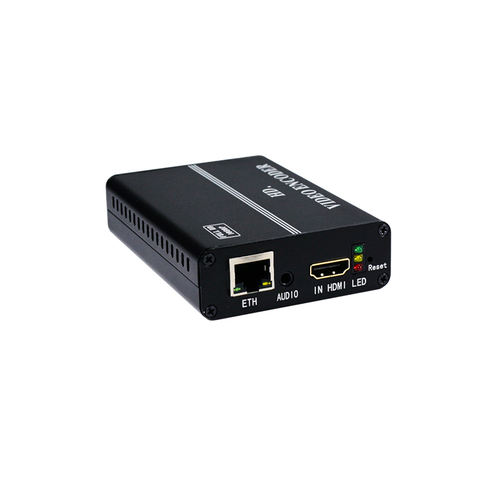

Shineco IPTV System HDMI Streaming 3G 4G WIFI Encoder support 3 cards
Short Description:
Model | SNK-H8 4G+ battery+WIFI+H.265 HDMI Encoder |
Input | HDMI, 3.5mm Audio |
Output | IP sigal input |
Video | |
Resolution | 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 etc |
Standard | H.264/H.265 |
Level | H.265 main profile H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
After encoding | 640*360~1920*1080 |
Bit-rate | CBR/VBR rate control 16KBIT/S~12MBIT/S |
frame | 30frame |
OSD | word.picture |
Audio | |
input | Hdmi,3.5 independent audio |
encoding | AAC/MP3 |
Bit-rate | 64Kb/s~384Kb/s |
Sample frequency | 32000,44100 etc |
IP Output | 1RJ 100M/1000M Ethernet,TS stream,dual stream,ONVIF protocol |
System | |
Protocol | HTTP,RTSP,RTMP,UDP,unicast.multicast |
Management | IE,remote upgrade |
General | |
power | 12V~2A |
comsumption | 5W |
demension | 103mm x 70mm x 25mm |
temperature | -20℃+ 60℃ |
humidity | <90%, |
weight | 0.18KG |
