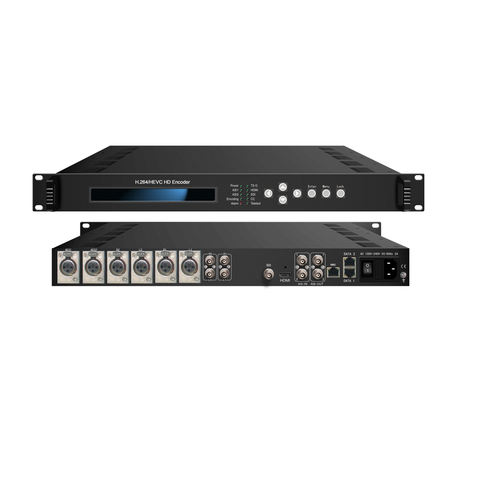

OSD LOGO Caption Insertion 2 Stereos AES XLR RCA analog audio input H.264 H.265 Encoder
Short Description:
| Video | |
| Interface | 1×HDMI, 1×HD-SDI |
| Resolution | |
| Input | Output |
| MPEG-4 AVC/H.264 HD | HEVC/H.265 HD |
| 1920×1080p@60/59.94 | |
| 1920×1080p@60/59.94 | 1920×1080p@60/59.94 |
| 1920×1080p@50 | |
| 1920×1080p@50 | 1920×1080p@50 |
| 1920×1080i@60/59.94 | |
| 1920×1080i@60 1920×1080p@60/30 | 1920×1080p@60 |
| 1920×1080i @50 | |
| 1920×1080i@50 1920×1080p@50/25 | 1920×1080p@50 |
| 1280×720p@60/59.94 | |
| 1280×720p@60/59.94 | 1280×720p@60/59.94 |
| 1280×720p@50 | |
| 1280×720p@50 | 1280×720p@50 |
| Encoding | HEVC/H.265 HD; MPEG-4 AVC/H.264 HD |
| Bitrate Range | HEVC/H.265: 0.5 – 20.00 Mbps MPEG-4 AVC/H.264: 4 – 20.00 Mbps |
| Rate Control | CBR/VBR |
| GOP Structure | IPPP, IBBP |
| Chroma | 4:2:0 |
| Audio | |
| Interface | 2×XLR, 2×AES, 2×RCA, 1×SDI (support maximum 2 stereos synchronous processing), 1×HDMI, |
| Encoding | MPEG-1 Layer II, HE-AAC (v1&v2), LC-AAC, DD AC3 passthrough |
| Sampling rate | 48KHz |
| Bit-rate | 48Kbps~384Kbps |
| Stream Input | 2 ASI Input for remux |
| Stream output | 2×ASI output ports, BNC interface |
| System function | LCD/keyboard and web management |
| General | |
| Dimensions | 482mm×405mm×44.5mm (W × D × H) |
| Temperature | 0~45℃(Operation), -20~80℃(Storage) |
| Power | AC110V±10%, 50/60Hz; AC 220V±10%,50/60Hz |
| Consumption | 15W |
