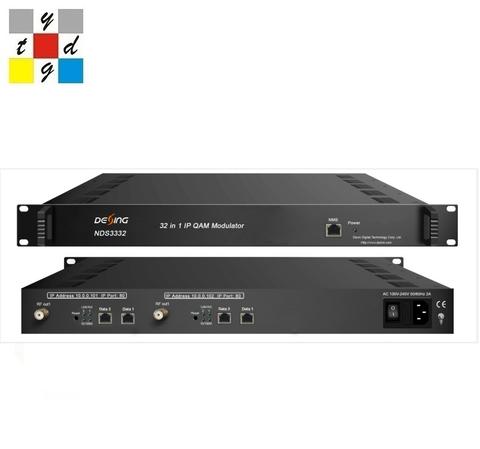

CATV NDS3332 IP QAM Modulator DVB-C Modulator
Short Description:
| Input | |
| Input | |
| Max 1024 IP input through 3 (front-panel Data port, Data 1 and Data 2) 100/1000M Ethernet Port (SFP interface optional). Each Data1 or Data 2 port can input max 512 IP, while front-panel Data port can input max 128 IP | |
| Transport Protocol | |
| TS over UDP/RTP, unicast and multicast, IGMP V2/V3 | |
| Transmission Rate | |
| Max 840Mbps for each GE input | |
| Mux | |
| 1Input Channel | |
| 1024 | |
| Output Channel | |
| 32 | |
| Max PIDs | |
| 256 per channel | |
| Functions | |
| PID remapping(auto/manually optional) | |
| PCR accurate adjusting | |
| PSI/SI table automatically generating | |
| ScramblingParameters | |
| Max simulscrypt CA | |
| 4 | |
| Scramble Standard | |
| ETR289, ETSI 101 197, ETSI 103 197 | |
| Connection | |
| Local/remote connection |
