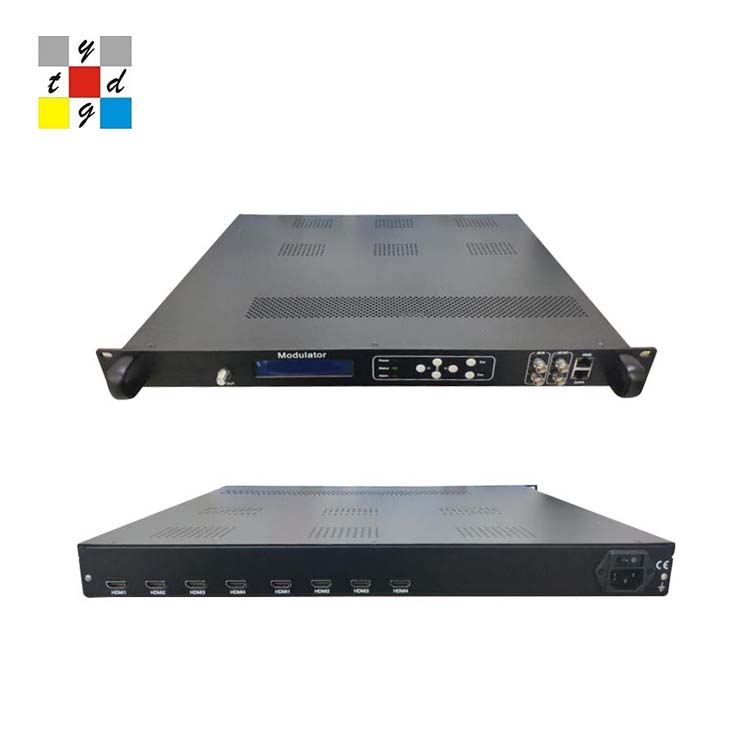

factory high quality uhf mpeg 2 opencl opr ts 7000 hashcode remove video-encoder modulator

Short Description:


Product Detail

Input 8HDMI inputs
  1×ASI input, BNC interface
Video
Resolution 1920×1080_60p 1920×1080_50p

  1920×1080_60i, 1920×1080_50i

  1280×720_60p, 1280×720_50p

  720x576_50i, 720x480_59.95i

Encoding MPEG4 AVC/H.264 High Profile Level 4.0 for HD

Bit-rate 0.8Mbps~19ps (each channel)

Rate Control CBR/VBR

GOP Structure IBBP

Advanced Pretreatment De-interlacing, noise reduction, sharpening
Audio
Encoding MPEG-1 Layer 2, HE-AAC,LC-AAC

Sampling rate 48KHz

Resolution 24-bit

Bit-rate 64Kb/s~384Kb/s each channel
Multiplexing Multiplex 1ASI input and 8 channels hd encoding programs
Stream output 2×ASI outputs, BNC interface(support PID filter and pass, support real time monitoring of the output stream.
  IP out MPTS, PTS, unicast, multicast, support IP out null packets filter.RF Out(DVB-C:  carriers; DVB-T: carriers ISDB-T)
System function LCD/keyboard operating, network management(SNMP), English control interface
  Ethernet software upgrade
General
Dimensions(W×D×H) 482mm×455mm×44.5mm

Approx weight 3.2

Temperature range 0~45℃(Operating), -20~80℃(Storage)

Power Requirements AC 110V±10%, 50/60Hz or AC 220V±10%, 50/60Hz

Power consumption 25W

xxxxxxx.
