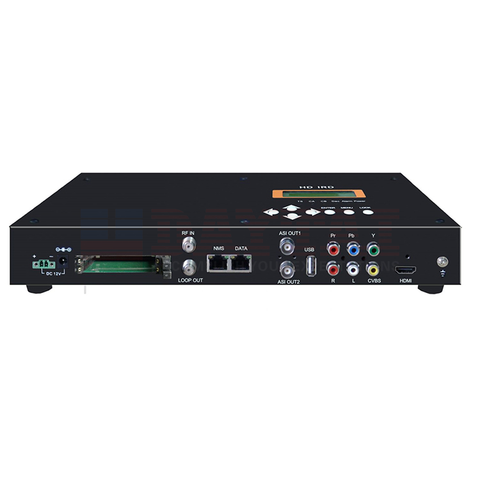

DVB-S/S2 input ASI out Modulation Scrambler Decoding RF Signal Digital TV Headend IRD Integrated Receiver Decoder
Short Description:
| Item | |
| Specification | |
| Input | |
| 1 x RF (DVB-S/S2), F type | |
| Tuner Section(DVB-S/S2) | |
| Input Frequency | |
| 950-2150MHz | |
| Symbol rate | |
| QPSK 1~45Mbauds; 8PSK 2~30Mbauds | |
| Code rate | |
| 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
| Constellation | |
| QPSK, 8PSK | |
| Output | |
| IP Output | |
| 1*MPTS over UDP.100Base-T Ethernet interface (unicast / multicast) | |
| 2×ASI | |
| BNC interface | |
| Video Output | |
| Video Interface | 1xHDMI, 1xCVBS (RCA), 1xYPbPr |
| Audio Interface | 1 x Stereo/mono (RCA), 1xHDMI |
| Resolution | 480i, 480P, 576i, 576P, 720p@50, 720p@60;1080i@50, 1080i@60; 1080p@50, 1080p@60 |
| Decode | Vedio: MPEG-2, MPEG-4 AVC/H.264,AVS/AVS+Audio: MPEG 1 Layer II, LC-AAC, HE-AAC, AC3, DRA |
| System | |
| Local interface | |
| LCD + control buttons | |
| Remote management | |
| Web NMS Management | |
| Language | |
| English | |
| General | |
| Power supply | |
| DC 12V | |
| Dimensions | |
| 312*165*42mm | |
| Weight | |
| 1.5 kg | |
| Operation temperature | |
| 0~45℃ |
