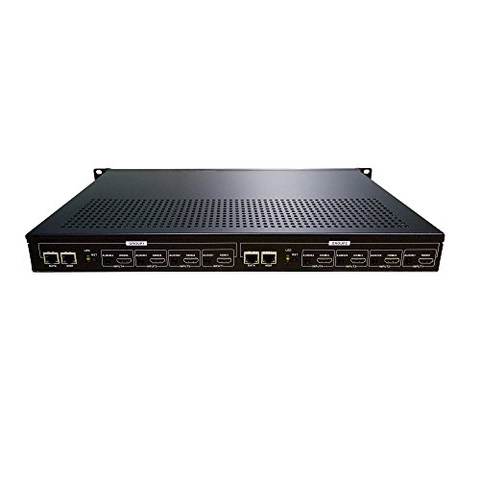

8 HDMI To IP H264 265 Video Encoder
Short Description:
| Product model | 1/4/8/16-channel HDMI HD encoder |
| Input | 16-channel HDMI input, 16 channel CVBS input, 16 channel 3.5 audio input |
| Output | 16 channel IP signal output |
| Video | |
| Input resolution | 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/704*576 And other conventional resolution |
| Coding standard | H.264 |
| Coding level | H.264 BASELINE PROFILE H.264 MAIN PROFILE H.264 HIGH PROFILE |
| Encoded size | 640*360~1920*1080(Can customize) |
| Video bit rate | Rate control:CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 30/60 |
| OSD | Character |
| Audio | |
| Input selection | 16 channel embedded audio hdmi, 16 channel 3.5MM independent audio |
| Audio coding | AAC/MP3 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100 48000etc |
| IP output | 16 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol |
| System | |
| Network protocol | Supports HTTP, RTSP, RTMP, UDP, HLSmulticast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
| The common use | |
| Power supply | AC 110~220V |
| power consumption | <100W |
| Size | 484mm x 365mm x 148mm(length x width x height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 7 KG |
