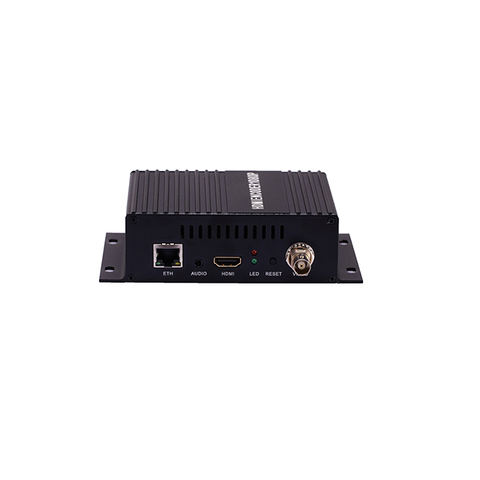

DVR System 1ch HD-SDI Video Encoder MPEG-4 for Live Stream Broadcast IPTV
Short Description:
| Input | 1 channel SDI input,1 channel 3.5mm audio input |
| Output | 1 channel IP signal output |
| Video | |
| Input resolution | 1920x1080p/1920x1080i/1280x720p/720*576i/640*480i And other conventional resolution |
| Coding standard | H.264 |
| Coding level | H.264 BASELINE PROFILEH.264 MAIN PROFILEH.264 HIGH PROFILE |
| Encoded size | 640*360~1920*1080(Can customize) |
| Video bit rate | Rate control:CBR/VBR 16KBIT/S~12MBIT/S |
| Video frame rate | 5-60 |
| OSD | Character,TEXT |
| Audio | |
| Input selection | 1 channel embedded audio SDI, 1 channel 3.5MM independent audio Support audio gain |
| Audio coding | AAC/MP3/G711 |
| Audio bit rate | 64Kb/s~384Kb/s |
| Sampling rate | 32000,44100 ,48000etc |
| IPoutput | 1 RJ 100M / 1000M adaptive Ethernet port, TS stream standard, dual-stream, ONVIF protocol |
| System | |
| Network protocol | Supports HTTP, RTSP, RTMP, UDP, HLS multicast, unicast |
| Configuration management | Support IE configuration, remote upgrade |
| The common use | |
| Power supply | 12V~2A |
| power consumption | 5W |
| Size | 146mm * 122mm * 42mm(length*width*height) |
| Operating temperature | -20℃+ 60℃ |
| Working humidity | <90%,Non-condensing |
| Weight | 0.3KG |
